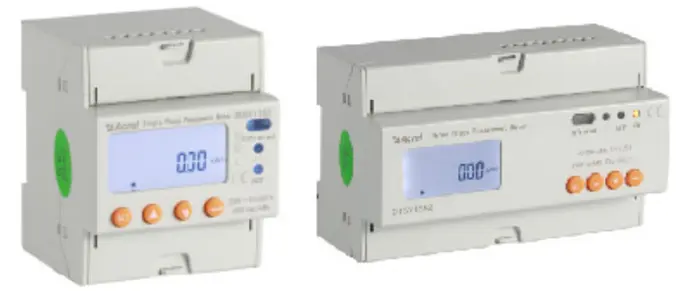

The ADL100-EY and ADL300-EY Series are high-performance DIN-rail mounted energy meters designed for precise measurement and data communication in single-phase and three-phase AC power systems. With multiple tariff support, configurable communication, and anti-tamper features, they are ideal for sub-metering in residential, commercial, and industrial environments. Integrated with RS485 Modbus-RTU or DL/T645 protocol, these meters provide reliable data for EMS, BMS, or smart grid applications.

Technical Specifications

Feature	ADL100-EY (Single-Phase)	ADL300-EY (Three-Phase)
Voltage	AC 220V	AC 3×220/380V
Current Range	5(60)A or 5(80)A	3×1.5(6)A or 3×10(80)A
Frequency	50/60Hz	50/60Hz
Display	LCD with backlight, multi-line	LCD with backlight, multi-line
Accuracy Class	Active energy: Class 1	Active energy: Class 1
Pulse Output	1 output (active energy)	1 output (active energy)
Communication	RS485 (Modbus-RTU / DL/T645)	RS485 (Modbus-RTU / DL/T645)
Relay Control (optional)	Remote switching / alarm linkage	Remote switching / alarm linkage
Tariff Support	4 rates, 14 time intervals	4 rates, 14 time intervals
Auxiliary Power	AC 85–265V or DC 100–350V	AC 85–265V or DC 100–350V
Power Consumption	<1W / 5VA	<2W / 10VA
Mounting	35mm DIN rail	35mm DIN rail
Dimensions (mm)	Compact (model-dependent)	Compact (model-dependent)
Installation Type	Din-rail with terminal seal cover	Din-rail with terminal seal cover

Functions

• Real-time monitoring of voltage, current, power, and energy
• Forward and reverse energy measurement
• Configurable multi-rate billing with time-based metering
• RS485 communication with external monitoring platforms
• Built-in pulse output for external data collection
• Optional relay control for remote device switching
• Internal anti-tamper mechanisms with sealable terminal covers

Applications

• Smart residential energy metering
• Commercial complex sub-metering
• Industrial machine-level energy tracking
• Building automation and lighting systems
• Intelligent energy billing and load control systems
