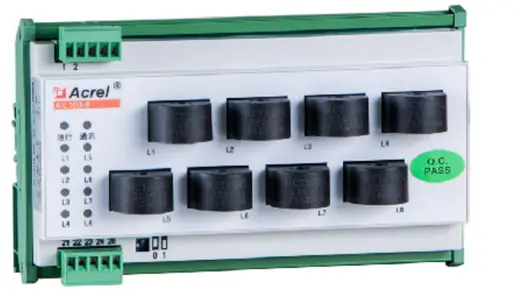

The AIL150-4/8 Insulation Fault Locator is part of Acrel’s medical intelligent IT system safety solution. It is engineered to detect and identify insulation faults in each outgoing line by working collaboratively with the AIM-M200 insulation monitor and ASG150 test signal generator. Supporting up to 8 channels, the AIL150-4/8 improves safety in sensitive environments such as operating rooms or intensive care units by enabling fast fault localization in isolated power systems. Its DIN-rail form factor, LED diagnostics, and seamless integration with Acrel’s ecosystem make it essential for medical-grade electrical safety monitoring.

Technical Specifications

Feature	Specification
Model	AIL150-4/8
Function	Insulation fault location on 4–8 channels
Working Voltage	DC (Paired with signal generator, e.g., ASG150)
Indicators	LED status display for each monitored channel
Mounting	DIN rail installation
Dimensions	198 × 123.6 × 73.8 mm
Compatible Devices	AIM-M200 (Monitor), ASG150 (Signal Generator)
Application Focus	Medical IT systems (e.g., surgical and ICU rooms)
Environment	Non-condensing, suitable for controlled facilities

Functions

• Detects insulation faults on each outgoing line
• Channel-by-channel location display via LED indicators
• Works in real-time with upstream insulation monitoring
• Improves response time during fault events in isolated power systems
• Designed for integration into smart medical energy management systems

Applications

• Operating room electrical panels
• ICU and life support area power safety monitoring
• Isolation power system fault tracking
• Medical-grade low-voltage IT power systems
• Clinics, surgical wards, and hospital diagnostics infrastructure
