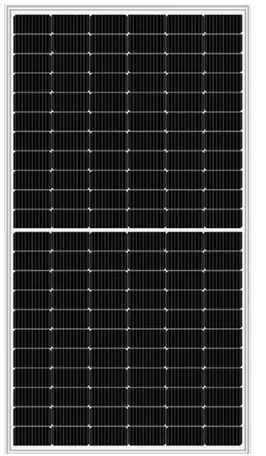

ANM-N Series Half-Cut Single/Double Glass PV Module (600W-630W)

ANM-N Series Half-Cut Single/Double Glass PV Module (600W-630W)

  • Superior half-cut PERC cell technology for enhanced energy conversion
  • Module efficiency up to 22.5% delivering exceptional output
  • Lossless cut technology reduces micro-cracks and improves durability
  • Higher mechanical load resistance (5400 Pa snow load, 2400 Pa wind load)
  • Anti-PID, anti-LID, and superior temperature resistance
  • 25-year linear output warranty and 10-year product warranty
  • Lower Levelized Cost of Energy (LCOE) and higher Internal Rate of Return (IRR)
  • High salt mist, ammonia, and sandstorm resistance for extreme environments

Share This Product :

Get a Quote
The Anern ANM-N Series Half-Cut Single/Double Glass PV Module integrates advanced PERC and multi-busbar (MBB) technologies to achieve outstanding power generation and reliability. Designed for high-efficiency solar systems, this module reduces electrical losses while increasing mechanical durability. Its compatibility with both residential and large-scale solar applications makes it a premium choice for investors looking for long-term performance and lower maintenance. Anern’s strict manufacturing standards ensure consistent high output and extended lifespan under all weather conditions.
Specifications
Electrical Characteristics (STC):
  • Model Numbers: ANM-N600W / N610W / N620W / N630W
  • Maximum Power (Pmax): 600W to 630W
  • Open Circuit Voltage (Voc): 46.64V to 47.19V
  • Short Circuit Current (Isc): 13.82A to 14.32A
  • Voltage at Maximum Power (Vmp): 54.67V to 55.90V
  • Current at Maximum Power (Imp): 12.86A to 13.53A
  • Module Efficiency: 21.5% to 22.5%
Mechanical Parameters:
  • Dimensions: 2464mm x 1134mm x 30mm
  • Weight: 34.0kg
  • Front Glass: 3.2mm, Anti-Reflection Coated, Tempered Glass
  • Back Glass: 3.2mm (optional), Double Glass version available
  • Cell Type: Mono-crystalline PERC, 182mm cells
  • Frame: Anodized Aluminum Alloy
  • Junction Box: IP68 Rated
  • Connector: MC4 Compatible
  • Cable: 4mm², 300mm (+/-) or customized length
  • Packaging: 36 pcs/pallet, 648 pcs/40HQ container
Temperature Parameters:
  • Nominal Operating Cell Temperature (NOCT): 45±2°C
  • Temperature Coefficient of Pmax: -0.276%/°C
  • Temperature Coefficient of Voc: -0.350%/°C
  • Temperature Coefficient of Isc: +0.046%/°C
  • Operating Temperature Range: -40°C to +85°C
Maximum Rated Parameters:
  • Maximum System Voltage: 1500VDC (IEC Certified)
  • Maximum Series Fuse Rating: 30A
Certifications
  • IEC61215 / IEC61730
  • ISO 9001:2015 (Quality Management System)
  • ISO 14001:2015 (Environmental Management System)
  • ISO 45001:2018 (Occupational Health & Safety Management System)
About Manufacturer
Anern Technology (Guangzhou Zhengneng Electronic Technology Co., Ltd.) is a professional manufacturer engaged in the R&D, production, and sales of high-performance solar products. Located strategically near Hong Kong, Macau, and Shenzhen in China’s Greater Bay Area, Anern operates with state-of-the-art facilities, automatic production lines, and a world-class engineering team. Their wide range of products—including solar panels, energy storage systems, inverters, and precision measurement devices—is exported to over 80 countries. Anern’s OEM/ODM capabilities and ISO-certified quality processes make them a trusted name in the global renewable energy market.
