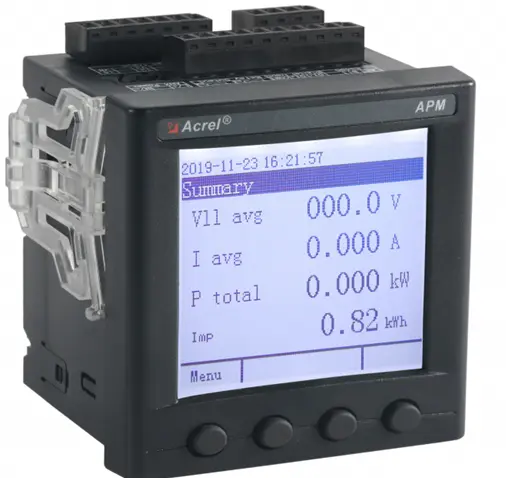

The APM830 is a high-precision, multifunctional power monitoring meter designed in accordance with IEC standards for industrial-grade power quality and energy management. It supports full electrical parameter measurement, advanced power quality analysis, transient event capture, and multi-rate energy statistics. With a modular design, the APM830 allows expansion via DI/DO modules, analog I/O, TF card logging, and multiple communication protocols (RS485, Profibus, Ethernet). Its vector analysis, waveform capture, and real-time harmonic monitoring make it ideal for critical energy distribution systems across utilities, factories, data centers, and commercial complexes.

Technical Specifications

Feature	Specification
Model	APM830
Display	Dot matrix LCD (192×160), white LED, 69mm×62mm
Power Supply	AC/DC 85–265V or 115–415V (P2); ≤15VA power consumption
Input Voltage	AC 3×57.7/100V, 3×63.5/110V, 3×230/400V, 3×400/690V
Input Current	AC 3×1(1.2)A or 3×5(6)A; overload: 10× for 1 sec
Frequency Range	45–65 Hz
Accuracy	Voltage & Current: Class 0.2 (IEC 61557-12)
Power Quality Features	Harmonics (2–63rd), voltage imbalance, crest factor, K-factor
Waveform Capture	20 waveforms, 10 before & after trigger; TF card expandable
Digital Inputs (DI)	2 standard, expandable to 8
Digital Outputs (DO)	2 relay, expandable via module
Analog Inputs/Outputs (AI/AO)	8 AI + 4 AO (optional); 0–20mA, 4–20mA, 0–5V, 1–5V
Pulse Output	10,000 imp/kWh (default); open collector
Event Logging	128 event records + alarm history; TF card expandable
Communication Ports	RS485 (×2), Infrared, Profibus-DP, Ethernet (RJ45)
Supported Protocols	Modbus-RTU, DL/T645-2007, Modbus-TCP, HTTP, DHCP, SMTP
Working Environment	-25°C to +70°C operating; -40°C to +85°C storage
Humidity	≤75%, no condensation
Altitude	≤2000 m
Installation	Panel mounting with modular expansion ports
Protection Rating	Front panel: IP54

Functions

• Measurement of voltage, current, active/reactive/apparent power, frequency
• Four-quadrant energy metering
• Harmonic analysis (2nd–63rd), waveform display, vector diagrams
• Power quality indicators: unbalance, crest factor, K-factor, THFF
• Transient recording with up to 800 waveform logs (TF card support)
• Digital & analog I/O for alarms, external equipment control
• Multi-rate billing support for energy usage analysis
• Real-time communication via RS485, Ethernet, or Profibus
• Advanced logging: max/min values, event logs, demand tracking

Applications

• Power grid quality supervision
• Energy usage tracking in industrial facilities
• Data center and IT load monitoring
• Smart building and campus-wide energy analytics
• Commercial metering with multi-user capability
• Power factor correction and unbalance detection
