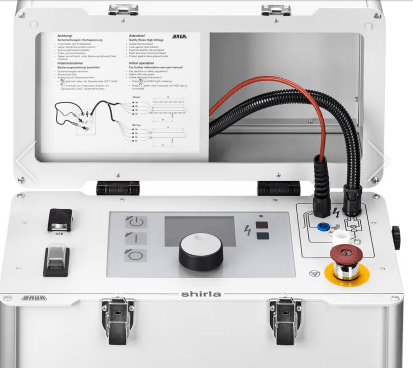

The Baur Shirla sheath test and fault location device is used for cable and cable sheath testing, and for the pre-location and pin-pointing of cable sheath faults and cable faults due to earth contact.
The fault pre-location is based on the measuring bridge principle according to Murray and Glaser. The measuring bridge is dimensioned especially for power cables but also enables pre-location for control and lighting cables. Zero balance and evaluation take place automatically.
The fault distance is shown in meters. Various cable sections can be entered, thus increasing the accuracy of the measurement.
For fault pin-pointing, shirla generates a pulsed voltage, thereby permitting the use of the step voltage method. Using the “Step voltage” set of the protrac? pinpointing system, cable sheath and other faults due to earth contact can be located quickly and accurately.
Functions
Cable and cable sheath testing with DC voltage up to 10 kV
Fault pre-location using high-resolution resistance measuring bridge
Pre-location of cable sheath faults and faults due to earth contact with measuring bridge
Step voltage method for cable sheath fault pin-pointing
FeaturesPre-location of cable sheath faults and faults due to earth contact
Measuring bridge with automatic zero balancing
Automatic evaluation
High accuracy by accounting for different cable sections in terms of length, conductor cross-section, and material
Cable sheath fault pin-pointing
Pulsed voltage up to 10 kV
4 pulse patterns are selectable
Adjustable switch-on delay and operating time
General functions
Continuously adjustable voltage
Adjustable current and voltage limitation
Automatic measurement sequences and reporting
Automatic report export to USB stick
Integrated discharge unit
Connection for an external emergency off the unit in accordance with EN 50191
