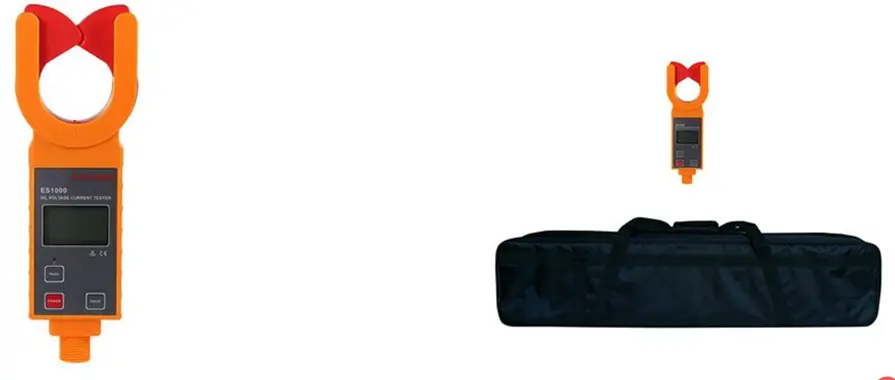

The ES1000 Clamp Ammeter is a multi-functional current and leakage current tester designed for both high-voltage and low-voltage environments. Paired with a high-strength 5-meter insulated rod, it is capable of measuring current on insulated conductors up to 60kV and bare conductors up to 35kV. Without the rod, it also serves as a precision low-voltage clamp meter. Built using high-precision CT sensing, the ES1000 ensures reliable, year-round measurements. Its ergonomic clamp head enables fast operation without compromising user safety, making it ideal for electrical maintenance teams, substations, power utilities, and industrial facilities.

Specifications:

• Measurement Range: 0.0mA – 1200A (50/60Hz)
• Resolution: 0.1mA
• Accuracy: ±2% ±5dgt
• Sampling Rate: 2 times/second
• Jaw Size: φ50mm
• Power Supply: DC 6V (4 × 1.5V AAA alkaline batteries)
• Measurement Method: Clamp-type CT
• Display: 48mm × 31mm LCD
• Device Dimensions: 87mm × 37mm × 262mm
• Weight: ~7kg (includes batteries and insulation rod)
• Insulating Rod: 5 segments, total 5 meters
• Overload Display: “OL” symbol
• Storage Capacity: 99 groups
• Full Data Indicator: “FULL” symbol
• Battery Alert: Warning at ≤5.2V
• Operating Temp: -10°C to 40°C
• Storage Temp: -10°C to 60°C
• Humidity Range:
  • 0°C – 31°C: ≤75%
  • 31°C – 40°C: ≤50%
• Dielectric Strength: AC 60kV/rms
• Safety Standards: IEC1010-1, IEC1010-2-032, CAT III (600V), Pollution degree 2, IEC61326 (EMC)

Typical Applications:

• Substation high-voltage line current checks
• Maintenance of 35–60kV insulated/bare line equipment
• Industrial current diagnostics in overhead or compact power networks
• Rapid field testing without circuit interruption

Packing List:

• 1 × Clamp Ammeter Unit
• 1 × 5-meter Insulated Rod (5 segments)
• 1 × Instrument Case
• 4 × AAA Batteries (1.5V)
• 1 × User Manual + Warranty Card
