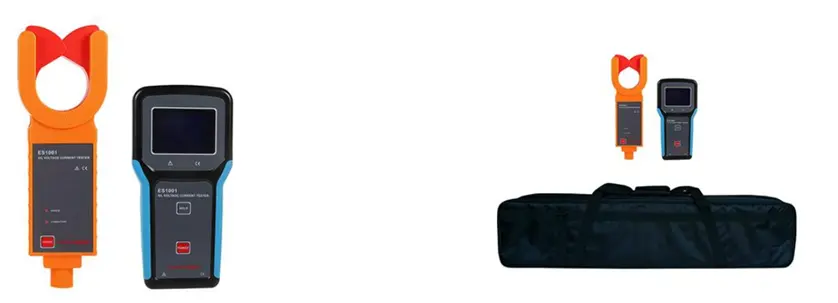

The ES1001 Wireless High Voltage Clamp Ammeter combines high-voltage safety with wireless convenience. With its integrated clamp sensor and 30-meter wireless receiver, it enables technicians to take remote, non-contact current measurements on both high and low-voltage lines. This robust and easy-to-use device is perfect for substations, power plants, utility field crews, and industrial maintenance applications. It offers essential features like data hold, peak detection, and full-range measurement from 0.1mA to 1200A. The included 5-section insulated rod (5m total) provides operational safety for live-line testing up to 60kV.

Specifications:

• Measurement Range: 0.0mA – 1200A (auto 50/60Hz)
• Resolution: 0.1mA
• Accuracy: ±2% ±5dgt
• Jaw Size: φ50mm
• Sampling Rate: 2 times/second
• Wireless Distance: 30 meters (line of sight)
• Display Sizes:
  • Clamp LCD: 48mm × 31mm
  • Receiver LCD: 62mm × 44mm
• Data Storage: 200 groups
• Overflow Indicator: “OL” symbol
• Battery Voltage Alert: <5.2V warning for both detector and receiver
• Clamp Dimensions: 87mm × 37mm × 262mm
• Receiver Dimensions: 100mm × 35mm × 204mm
• Weight: Approx. 7kg (with rod and batteries)
• Insulating Rod: 5 segments, 5 meters total
• Power Supply:
  • Clamp: DC 6V (4 × AAA batteries)
  • Receiver: DC 7.5V (5 × LR6 AA batteries)
• Dielectric Strength: AC 60kV/rms
• Operating Temperature: -10°C to +40°C
• Storage Temperature: -10°C to +60°C
• Humidity Tolerance:
  • 0°C–31°C: ≤75%
  • 31°C–40°C: ≤50%
• Safety Standards:
  • IEC1010-1, IEC1010-2-032
  • Pollution Degree 2
  • CAT III (600V)
  • IEC61326 (EMC standard)

Typical Applications:

• High-voltage line current detection without direct contact
• Field testing in power substations
• Leakage current diagnosis in distribution lines
• Wireless testing in difficult-to-access installations
• Power plant inspection and maintenance routines

Packing List:

• 1 × Clamp Ammeter (Detector)
• 1 × Wireless Receiver
• 1 × 5-meter Insulated Rod (5 sections)
• 1 × Carrying Case
• 4 × AAA Batteries (Clamp)
• 5 × LR6 AA Batteries (Receiver)
• 1 × Manual & Warranty Card
