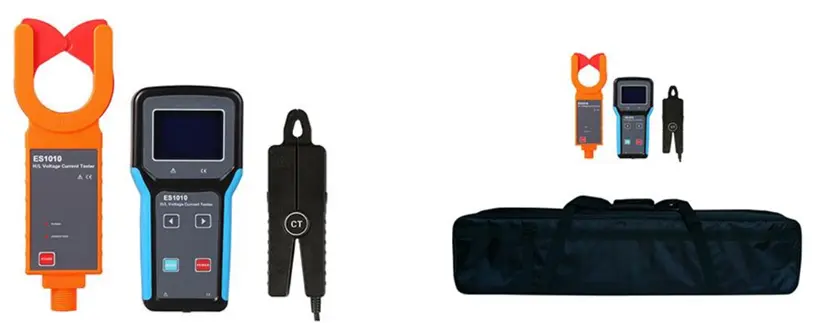

The ES1010 Wireless High & Low Voltage Ratio Tester is a high-efficiency clamp-type ammeter and CT analyzer, designed to measure the transformation ratio, current, phase, and polarity between high-voltage and low-voltage current transformer circuits without interrupting power. It includes a high-voltage detector, low-voltage current clamp, and host unit, all communicating wirelessly for hassle-free testing up to 30 meters. Perfect for substations, power plants, and field electrical work, this device ensures quick, non-invasive testing for CT performance validation and transformer maintenance.

Specifications:

Component	High Voltage Detector	Host (Current Clamp)
Measurement Range	0.0mA–1200A	0.0mA–20A
Resolution	0.1mA	0.1mA
Jaw Size	φ50mm	φ7.5mm
Accuracy	±2% ±5dgt	±0.5% ±5dgt

• Display: 128×64 LCD with blue backlight (62mm × 44mm)
• Sampling Rate: 2 samples/sec
• Ratio Display Options:
  • Measured primary/secondary current
  • Secondary 5A ratio reference
  • 10kV transformer reference (e.g., 10kV/380V)
• Wireless Transmission Distance: 30 meters
• Data Storage: 500 groups
• Indicators: FULL, HOLD, OL (overflow), NO SIGNAL, low battery
• Power Supply:
  • High-voltage detector: DC 6V (4 × AAA)
  • Host: DC 7.5V (5 × LR6 AA)
• Insulation Rod: 5-meter segmented pole
• Dimensions:
  • Detector: 87 × 37 × 262 mm
  • Host: 100 × 35 × 204 mm
  • Clamp: 42 × 20 × 137 mm
• Weight: Total 3.1 kg (incl. rod and packaging)
• Operating Temp: -10°C to 40°C
• Storage Temp: -10°C to 60°C
• Humidity: ≤75% @ 0–31°C, ≤50% @ 31–40°C
• Safety Standards: IEC1010-1, IEC1010-2-032, CAT III (600V), IEC61326 (EMC), Pollution Degree 2

Applications:

• Field testing of CT ratio and polarity
• Online CT error measurement without service interruption
• High-voltage current detection in substations
• Utility inspections and equipment diagnostics

 Packing List:

• 1 × High Voltage Detector
• 1 × Host Unit
• 1 × Current Clamp
• 1 × Insulated Rod (5 m)
• 1 × USB Data Cable
• Batteries (4 × AAA, 5 × AA)
• 1 × Carry Case
• 1 × User Manual & Warranty
