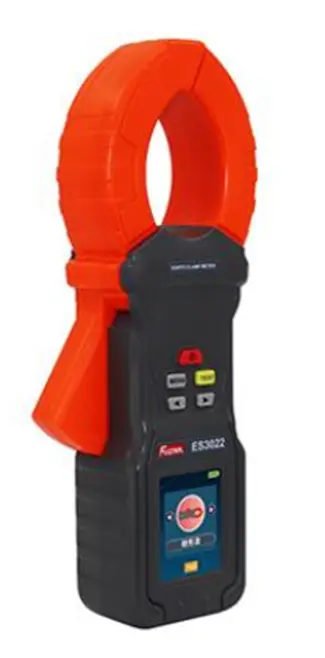

The ES3022 Series combines microprocessor precision with clamp-on convenience, ideal for telecom, power grids, and industrial applications. Features include real-time data upload, TFT color display, and shock/dust/moisture-resistant design.

Specifications:

• Measurement Ranges:
  • Clamp Resistance: 0.00Ω–2000Ω (ES3022F).
  • Leakage Current: 0.000mA–60A (resolution: 1µA).
  • 3/4-Wire Resistance: 0.00Ω–30kΩ.
  • AC Voltage: 600V (resolution: 0.01V).
• Power: DC 3.7V lithium battery (750mA max consumption).
• Environmental:
  • Operating: -10°C to 40°C, <80% humidity.
  • Storage: -20°C to 60°C, <70% humidity.
• Dimensions/Weight:
  • Meter: 273mm×106mm×53mm / 975g (with battery).
  • Jaw Size: 68mm diameter.
• Interfaces: USB 1.5m cable (Bluetooth in ES3022F).
• Safety: AC 3700V withstand voltage, 20MΩ insulation resistance.
