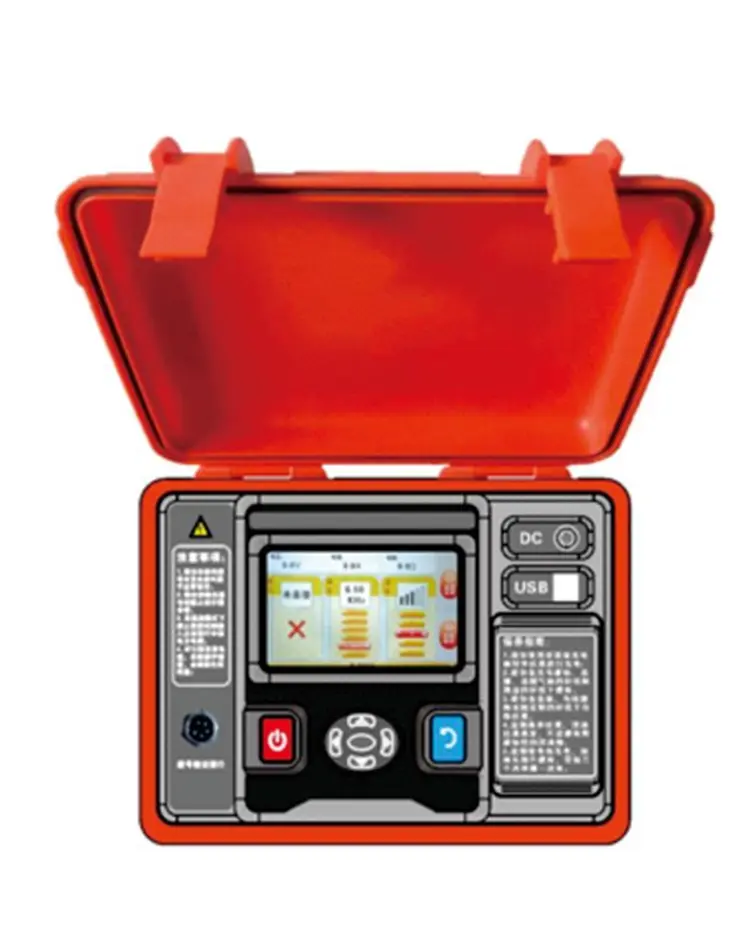

The ES7060/ES7060A is a professional cable identification system designed for power utilities and cable technicians. It features intelligent live recognition technology that safely identifies target cables among multiple parallel runs, preventing dangerous misidentification. The system consists of a transmitter that generates coded signals and a receiver that detects and decodes these signals. With its dual-mode operation, it works on both energized and de-energized cables, making it versatile for field applications. The instrument’s directional detection capability and advanced filtering ensure reliable results even in electrically noisy environments.
Specifications:
Measurement Ranges:
Frequency range: 640Hz to 8.05kHz (6 selectable frequencies)
Output voltage: Up to 110V peak (direct connection mode)
Current detection: 0-100A (with 20dB noise rejection)
Test Modes:
Live cable identification (coupling method)
Power outage identification (direct connection)
Armor damage mode (for buried/damaged cables)
Self-test modes for both live and power outage scenarios
Power:
Transmitter battery: 9.6V/6Ah Li-ion (ES7060) or 9.6V/3.8Ah (ES7060A)
Receiver battery: 8.4V/2500mAh Li-ion
Runtime: Up to 8 hours (transmitter), 6 hours (receiver)
Environmental:
Operating temperature: -10°C to 40°C
Storage temperature: -20°C to 50°C
Humidity: ≤95% RH (non-condensing)
Physical:
Transmitter dimensions: 275×226×150mm
Receiver dimensions: 172×106×42mm
Transmitter weight: 2.28kg (4.44kg total with accessories)
Receiver weight: 405g (with battery)
Safety:
Withstand voltage: AC 3700V (transmitter), AC 2000V (receiver)
Insulation resistance: >10MΩ
Double insulation protection
Interfaces:
Waterproof aviation sockets for connections
USB ports for charging and firmware updates
Bluetooth connectivity (optional)
