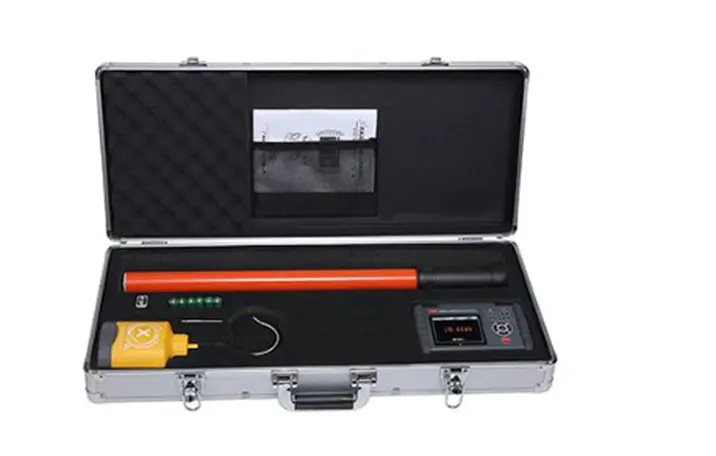

The ES9070 is a professional wireless voltmeter for high-voltage transmission line maintenance, eliminating risks from induced voltages. Its detector hangs on live wires (up to 220kV) while the handheld receiver displays real-time readings via 30m wireless transmission. Ideal for power utilities and line inspectors, it combines portability, safety compliance (IEC61010-1), and all-in-one voltage coverage—replacing multiple traditional electroscopes.

Specifications

Measurement

• Voltage Ranges:
  • Ground voltage: 0.1kV–120kV
  • Line voltage: 0.1kV–220kV (auto-calculated)
• Accuracy: ±15%±5 digits (overhead lines) / ±25%±5 digits (other)
• Update Rate: 2 readings/sec

Technical

• Power:
  • Receiver: 5×AA batteries (DC6V)
  • Detector: 9V zinc-manganese battery
• Wireless: 433MHz (30m range)
• Display: 3.5-inch color LCD (72mm×55mm)
• Safety:
  • AC 220kV insulation (rod) / 3700V (device)
  • IP54-rated (dust/moisture resistant)
• Environmental:
  • Operating: -10°C–40°C, ≤70% RH
  • Storage: -10°C–60°C, ≤80% RH

Physical

• Dimensions:
  • Receiver: 187×119×48mm
  • Detector: 146×100×75mm
• Weight:
  • Receiver: 450g / Detector: 240g
  • Insulated rod: 3m length, Φ38mm

About Manufacturer

Fuzrr Technology (Guangzhou Zhengneng Electronic Technology Co., Ltd) is a professional manufacturer engaged in R&D, production, and sales. The factory is located in Guangzhou, the metropolis of China’s International Greater Bay Area Economic Circle, near Hong Kong, Macau, and Shenzhen in the south. The company specializes in high-voltage testers, utility locators, and electrical safety instruments, exporting to 80+ countries. With 15+ years of experience, Fuzrr operates automated production lines with 100+ skilled workers and offers OEM/ODM services. Its R&D team provides robust technical support for global projects.
