FR3010 Digital Earth Resistance Tester

FR3010 Digital Earth Resistance Tester

  • Measures ground resistance (0.01Ω–3000Ω) and ground voltage (0–600V) with high precision
  • Supports two-wire and three-wire measurement methods
  • Large gray-white LCD with backlight, clear reading even in dark environments
  • Stores up to 500 groups of data with easy retrieval and overflow warning
  • Fast, stable, and reliable microprocessor-controlled measurement
  • Built-in wire resistance check function for enhanced accuracy
  • Ideal for telecommunications, power grids, oil fields, gas stations, and lightning protection systems

Share This Product :

Get a Quote
The FR3010 Digital Earth Resistance Tester from FUZRR Technology offers fast, accurate, and stable testing of ground resistance and voltage. Designed for modern electrical safety requirements, it supports both two-wire and three-wire measurement methods, replacing traditional hand-crank testers. With a wide measurement range (0.01Ω to 3000Ω for resistance and 0–600VAC for voltage), a large backlit LCD, and 500-group data storage, the FR3010 is perfect for field engineers, electricians, and maintenance professionals. Ideal for use in telecommunication systems, power distribution networks, lightning rod grounding, and more.
Specifications:
Technical Details:
  • Ground Resistance Range: 0.01Ω–3000Ω; Accuracy: ±1.5%rdg±3dgt
  • Ground Voltage Range: 0–600VAC; Accuracy: ±1.5%rdg±3dgt
  • Resolution: 0.01Ω for resistance, 0.01V for voltage
  • Measurement Method: Precision three-wire and simple two-wire methods
  • Test Current: >20mA (sine wave)
  • Line Voltage Measurement: Up to AC600V
  • Data Storage: 500 groups; “FULL” symbol when memory is full
  • Data Recall: “MR” symbol display
  • Alarm Function: Audible alarm when measurement exceeds set value
  • Sampling Speed: Voltage – approx. 3 times/sec; Resistance – approx. 5 seconds/test
Display and Physical Details:
  • Display: 4-digit large LCD (108mm × 65mm) with gray-white backlight
  • Meter Size: 240mm × 188mm × 85mm
  • Weight: 1230g (meter only, with batteries)
Power Supply:
  • 6 × 1.5V (LR14) alkaline batteries
  • Power Consumption:
    • Standby: Max 40mA (backlight off)
    • Backlight On: Max 43mA
    • Measurement: Max 120mA
Environmental Conditions:
  • Operating Temperature/Humidity: -10℃ to 40℃; ≤80%RH
  • Storage Temperature/Humidity: -20℃ to 60℃; ≤70%RH
Electrical Safety:
  • Overload Protection: AC280V/3s (E-Hand to E-Sports)
  • Insulation Resistance: ≥10MΩ (500V between circuit and case)
  • Dielectric Strength: AC3700V/rms
  • EMC: IEC61010-4-3 (≤1V/m RF field immunity)
  • Safety Standards: IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), CAT III 300V

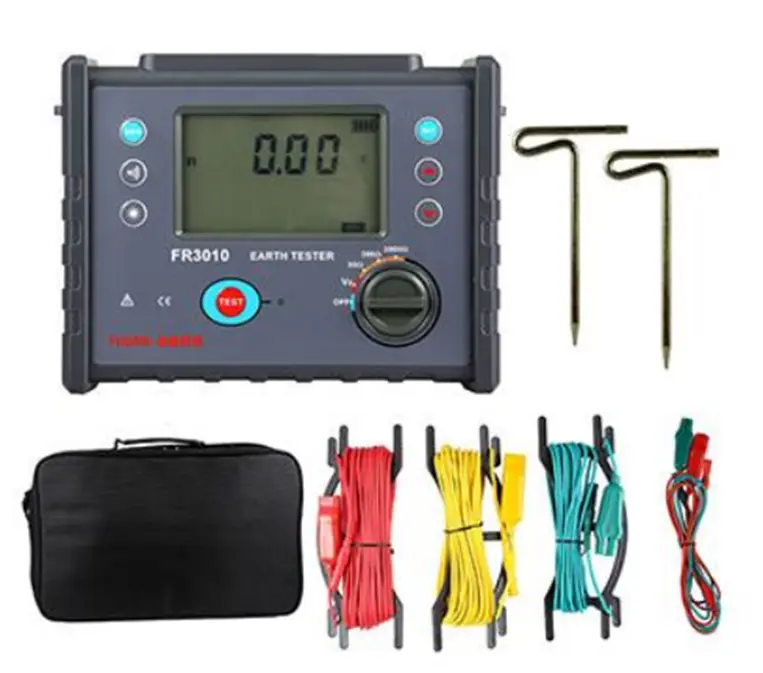

Included Accessories:
  • 1 × Tester
  • 1 × Carry Bag
  • 2 × Auxiliary Ground Rods
  • 3 × Test Leads (Red 15m, Yellow 10m, Green 5m)
  • 2 × Simple Test Leads (Yellow 1.5m, Green 1.5m)
  • 6 × LR14 Batteries
  • 1 × Manual and Warranty Card
About Manufacturer:
FUZRR Technology (Guangzhou Zhengneng Electronics Technology Co., Ltd.) is a leading manufacturer of electrical testing equipment, offering high-performance instruments like ground resistance testers, multimeters, insulation testers, and battery analyzers. Based in Guangzhou, China, FUZRR products are trusted worldwide, backed by international certifications and OEM/ODM customization services.
