FR3015 Insulation Resistance Tester (Tramegger 2500V)

FR3015 Insulation Resistance Tester (Tramegger 2500V)

  • Wide Insulation Resistance Range: Up to 100.0GΩ with up to 2500V test voltage
  • Measures: Insulation resistance, AC voltage, DC voltage, absorption ratio (DAR), and polarization index (PI)
  • Display: Large gray-white LCD with backlight for clear readings in low light
  • Data Storage: 500-group data storage with USB interface for easy data export
  • Test Current: High short-circuit test current ≥1.5mA at 1000V for faster charging
  • Design: Shock-proof, dust-proof, moisture-proof design suitable for harsh environments
  • Ideal For: Transformers, motors, cables, switchgear, and electrical installations

Share This Product :

Get a Quote
The FR3015 Insulation Resistance Tester from FUZRR Technology is a professional-grade megohmmeter designed for testing insulation strength in transformers, motors, cables, and electrical equipment. With a maximum test voltage of 2500V and a wide resistance measurement up to 100.0GΩ, the FR3015 provides accurate and reliable results even in demanding environments. It features a large, backlit LCD, 500 data memory, USB connectivity, and advanced diagnostic functions like DAR and PI measurements, making it an essential tool for electrical maintenance, energy industries, and manufacturing sectors.
Specifications:
Technical Details:
  • Test Voltage: 100V to 2500V (Model dependent)
  • Insulation Resistance Range: Up to 100.0GΩ
  • Voltage Measurement: 0–1000V (AC/DC)
  • Resolution: 0.01MΩ for insulation resistance, 0.1V for voltage
  • Output Short-Circuit Current: ≥1.5mA at 1000V
  • Features: Measures Insulation Resistance, DC/AC Voltage, Absorption Ratio (DAR), Polarization Index (PI)
Display and Physical Details:
  • Display: 4-digit large LCD (73mm × 43mm) with gray-white backlight
  • Instrument Size: 175mm × 112mm × 53mm
  • Weight: 1230g (with batteries)
Power Supply:
  • Batteries: 8 × 1.5V AA (LR6) alkaline batteries
  • Power Consumption:
    • Standby: Max 18mA (backlight off)
    • Testing: Max 326mA (backlight on)
Connectivity:
  • USB Interface: For data download and record management
  • Monitoring Software: Included (CD)
Environmental Conditions:
  • Operating Temperature/Humidity: -10℃ to +50℃; ≤85%RH
  • Storage Temperature/Humidity: -15℃ to +55℃; ≤90%RH
Electrical Safety:
  • Insulation Resistance: ≥50MΩ (at 1000V)
  • Withstand Voltage: AC3kV/50Hz for 1 min
  • Compliance: IEC61010-1, IEC1010-2-31, IEC61557-1/5, IEC60529 (IP54), CAT III 300V

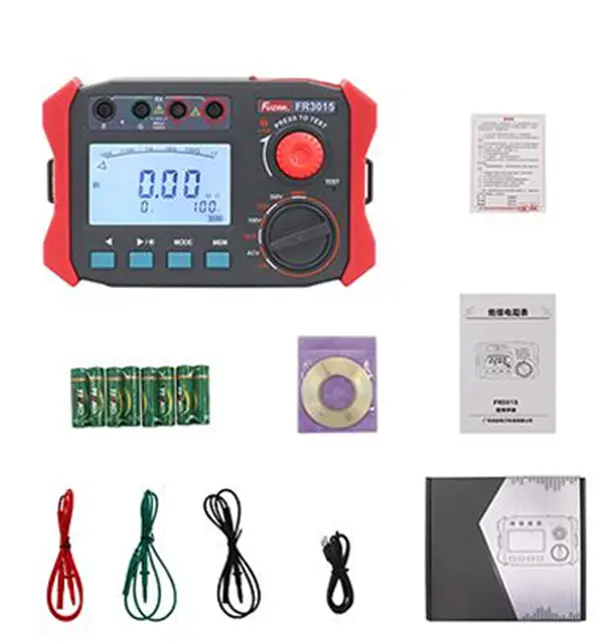

Included Accessories:
  • 1 × FR3015 Tester
  • 3 × High-Voltage Test Leads (Red, Black, Green, 1m each)
  • 8 × 1.5V AA Alkaline Batteries
  • 1 × USB Cable
  • 1 × Monitoring Software CD
  • 1 × Manual and Warranty Certificate
  • 1 × Carrying Case
About Manufacturer:
FUZRR Technology (Guangzhou Zhengneng Electronics Technology Co., Ltd.) specializes in professional-grade testing equipment for the electrical and energy industries. With reliable designs, high accuracy, and compliance with global standards, FUZRR products are trusted worldwide for quality insulation, grounding, and electrical safety measurements.
