Cable Fault Locator

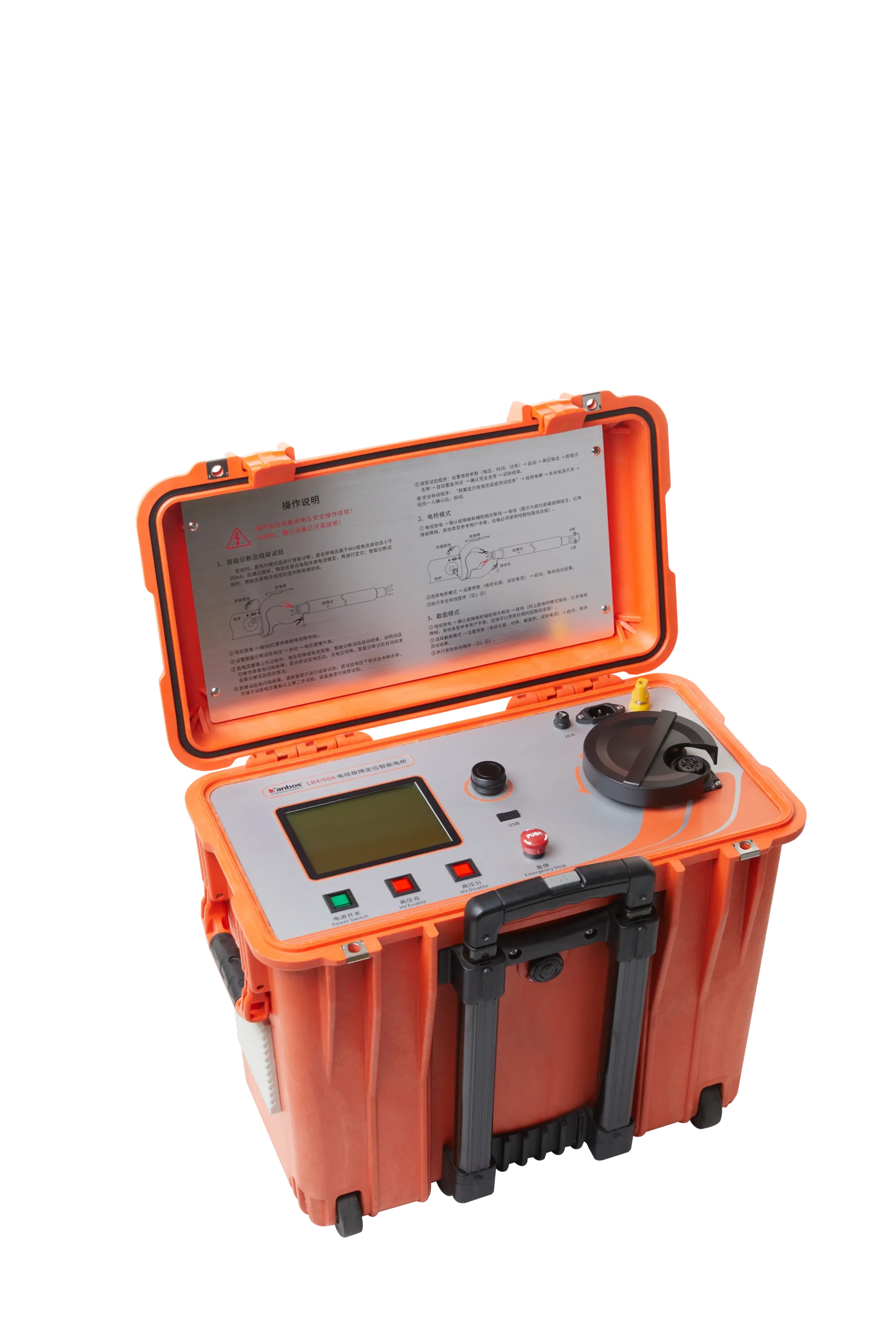

LB4-60A Smart Bridge for Cable Fault Location

  • Direct fault distance display (no waveform analysis required)
  • Suitable for high-resistive faults with built-in burning function (up to 60kV)
  • Single-knob operation
  • Smart analysis and intelligent diagnosis
  • Lightweight and portable (trolley case design)
  • Pre-locates sheath faults and difficult cable faults
  • Ideal for long-distance or cross-bonded cables where TDR methods fail

Share This Product :

The LB4-60A is a high-precision, intelligent high-voltage bridge designed to pre-locate cable faults. Unlike conventional TDR-based systems, it shows fault distances directly, requiring no waveform interpretation. It’s ideal for high-resistive and complex fault scenarios such as subsea or long cables. A burning function of up to 60kV enables the transition of high-resistive faults to low-resistive ones for easier identification. Its smart analysis automatically detects fault types and guides users to appropriate testing methods.
Applications:
  • Pre-location of difficult cable faults
  • High-resistive fault burning and location
  • Cable sheath fault identification
  • Long-distance cable diagnostics
  • Use where TDR and ARM technologies are ineffective
Specifications:
Test Modes:
  • Intelligent diagnosis
  • Bridge mode
  • Cross-section mode
  • Burn-through mode
Voltage Output:
  • Burn-through mode: 0–60kV DC (negative polarity)
  • Bridge mode: 0–4kV DC (bipolar)
Current:
  • Max 400 mA (burn-through and bridge mode)
  • Burn-through power: 20–100%, adjustable
  • Burn-through time: 0–90 min, adjustable
Cable Area:
  • Cross section: 1–9999 mm², adjustable
Test Range:
  • 0.001–50 km
Display:
  • 320 × 240 LCD, visible in sunlight
  • Two-dimensional coordinate map
  • Digital display
Accuracy:
  • ± (0.1%·L + 1) m (L = cable length)
Memory & Data:
  • Record up to 100 tests
  • 32 GB storage via USB
Safety & Protection:
  • Ground resistance < 10Ω
  • Temperature detection
  • Double ground system
  • Auto protection loop
Power & Environmental:
  • Power: 100–240V AC, 50/60Hz
  • Max Power: 400W
  • Operating Temperature: -25°C ~ 50°C
  • Storage Temperature: -30°C ~ 60°C
  • Humidity: <95%, non-condensing
  • Protection Rating: IP43
Build & Weight:
  • Dimensions: 300 × 460 × 500 mm
  • Weight: 22.3 kg (without accessories)
