TECHNICAL DATA

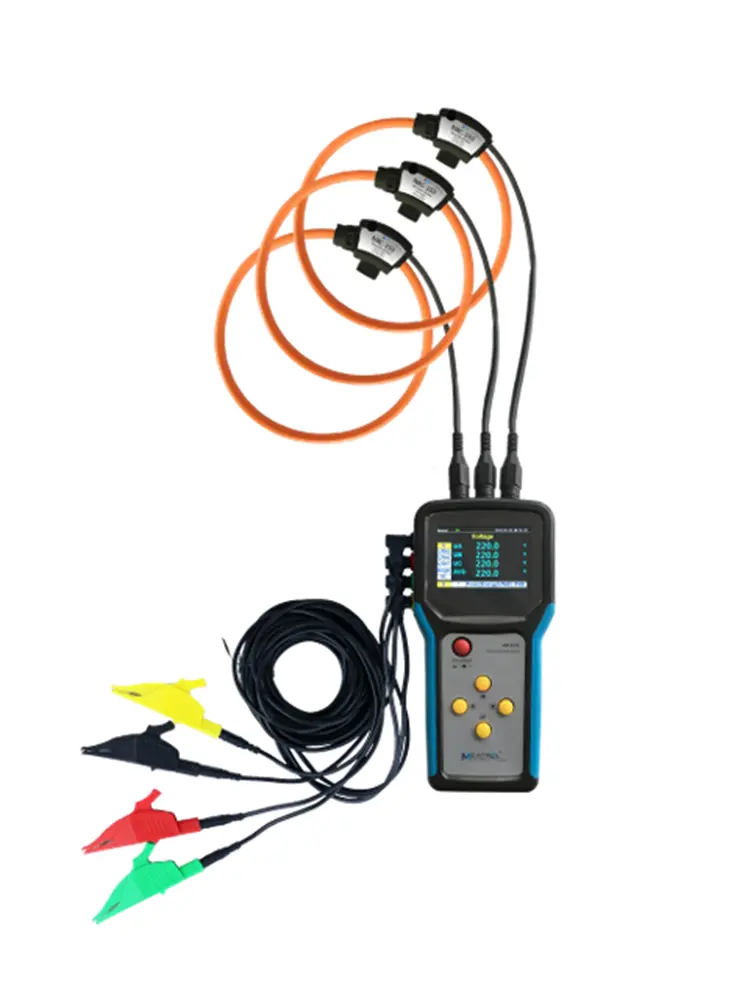

• Input sensors: Rogowski coils (max 333mV), 333mV CTs, and current clamps
• Rated current ranges: 100A to 6000A (0.5% accuracy, model dependent)
• Voltage measurement range: 60–500V (±0.2%)
• Frequency range: 45–65Hz (±0.01%)
• Sampling rate: 8kHz
• Harmonics: Up to 52nd order
• Display: 3.5” TFT screen
• Energy readings: Active (Class 0.5s), Reactive (Class 2), Apparent (Class 0.5)
• Power factor accuracy: ±0.005
• Memory: 4GB SD card (default), 1-minute logging interval (adjustable 1s–9999s)
• Data format: CSV
• Power supply: 4×AA battery (~7h use) or USB Type-C
• Dimensions: 215×100×35 mm; Weight: 350g
• Environmental limits: –25°C to +55°C; RH 5–95% (non-condensing); Altitude ≤3000m
• Protection: IP20, CAT III (277/480VAC), EMC compliant (IEC61000 series)

Customer Benefits

• Compact handheld design with large color display
• Compatible with a wide range of Rogowski coils and CTs
• Energy and demand monitoring with timestamped peak records
• Harmonic analysis up to 52nd order with detailed THD breakdown
• All parameters configurable via onboard menu interface

All the parameters can be customized. Contact us for details.
