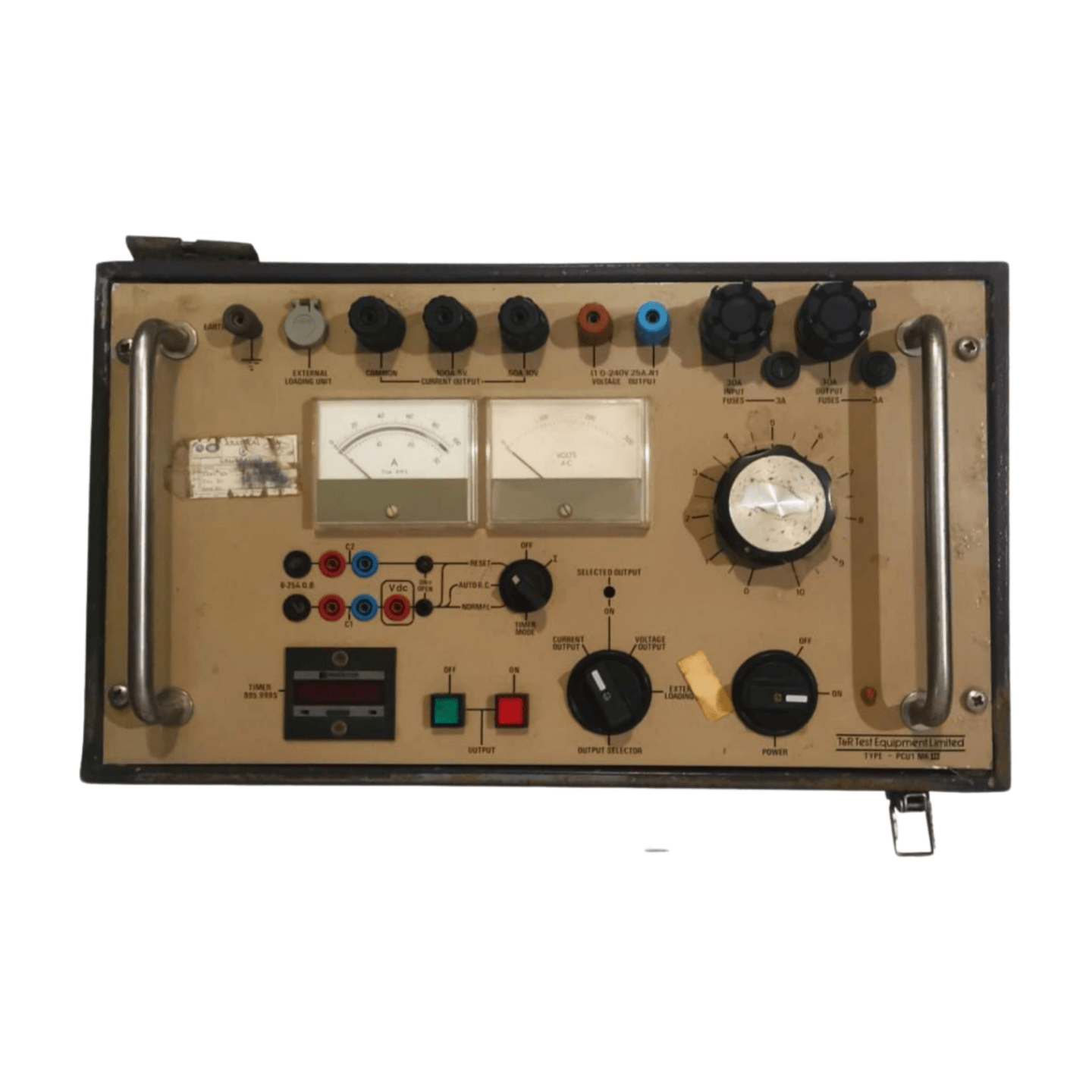

The PCU1/E Primary Current Injection Test Set Is Ideally Suited To Commissioning and Maintenance Testing Where High Currents Up To 3000A Are Required

Separate control and loading units can be used for maximum flexibility. The combination of the?PCU1/E?and the correct loading unit will be ideal for all low primary current injection tests up to?3000A, including testing under and over current relays, circuit breakers and?CT?ratio testing.

---

Features

• 6.9KVA?output capability
• Continuously variable output
• Multifunction digital timing system
• Digital true RMS ammeter with memory
• Digital true RMS voltmeter
• Automatic switch-off at end of test
• Rugged, compact design
• Secondary injection up to100A
• Loading units from 500A to? 000A
• Low impedance, dual-range outputs
