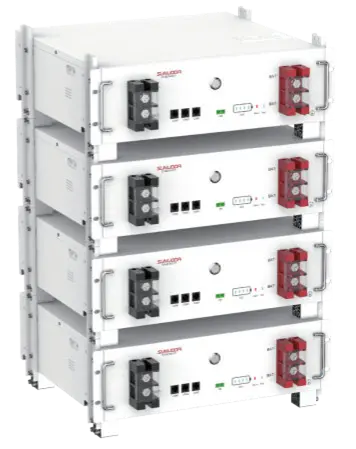

The Atrix Basic provides a simplified modular energy storage solution for homes. With capacities from 5kWh to 20kWh per pack, the system can scale up to 1MWh. It is optimized for easy two-person installation and offers cost-effective, reliable performance.

Technical Specifications:

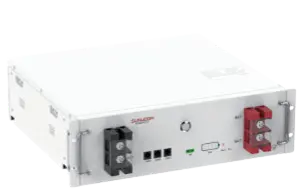

Model Atrix Basic-5:

• Nominal energy: 5kWh
• Usable Energy: 5kWh
• Rated Voltage: 2V
• Charge/discharge cut off voltage: 8V-55.2V
• Rated Charge/Discharge Current: 50A/80A
• charge/discharge current: 100A / 100A
• Communication interface: 0/RS485
• Scalability: 240 in parallel (Optional Data Box)

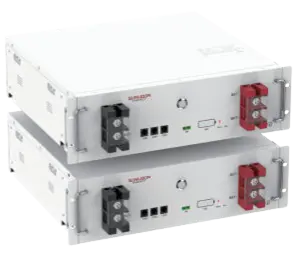

Model Atrix Basic -10:

• Nominal energy: 10kWh
• Usable Energy: 10kWh
• Rated Voltage: 2V
• Charge/discharge cut off voltage: 8V-55.2V
• Rated Charge/Discharge Current: 100A/160A
• charge/discharge current: 180A / 180A
• Communication interface: 0/RS485
• Scalability: 240 in parallel (Optional Data Box)

Model Atrix Basic -15:

• Nominal energy: 15kWh
• Usable Energy: 15kWh
• Rated Voltage: 2V
• Charge/discharge cut off voltage: 8V-55.2V
• Rated Charge/Discharge Current: 150A/240A
• charge/discharge current: 240A / 240A
• Communication interface: 0/RS485
• Scalability: 240 in parallel (Optional Data Box)

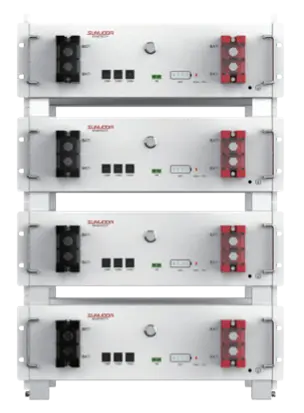

Model Atrix Basic -20:

• Nominal energy:0 20kWh
• Usable Energy: 20kWh
• Rated Voltage: 2V
• Charge/discharge cut off voltage: 8V-55.2V
• Rated Charge/Discharge Current: 200A/320A
• charge/discharge current: 320A / 320A
• Communication interface: 0/RS485
• Scalability: 240 in parallel (Optional Data Box)

Operating conditions:

• Installation location Indoor
• Ambient Temperature Discharging:-4℉to 122℉ (-20℃ to 50℃),Charging:32℉ to 122℉ (0℃ to 50℃)
• Humidity 5% to 95%, non-condensation
• Dimensions (W*H*D, mm) 440*135*410/PACK
• Weight 45kg/90kg/135kg/180kg
• Enclosure protection rating IP20
• Altitude <4000m
• Cooling Natural convection

Warranty:

• 10 Years

Key Features:

• Compact and cost-effective design
• Easy to install and maintain
• Flexible modular expansion

Certifications:

• IEC62619
• CE
• UN38.3

About Manufacturer:

Sunwoda Energy, a subsidiary of Sunwoda Group (SZ300207), is a globally leading enterprise in Residential, Commercial & Industrial, Utility, and Smart Energy Storage solutions. With 28+ years in the new energy industry, Sunwoda ranks among the top 10 global battery companies with 246 GWh total production capacity and 50,000+ staff worldwide.
