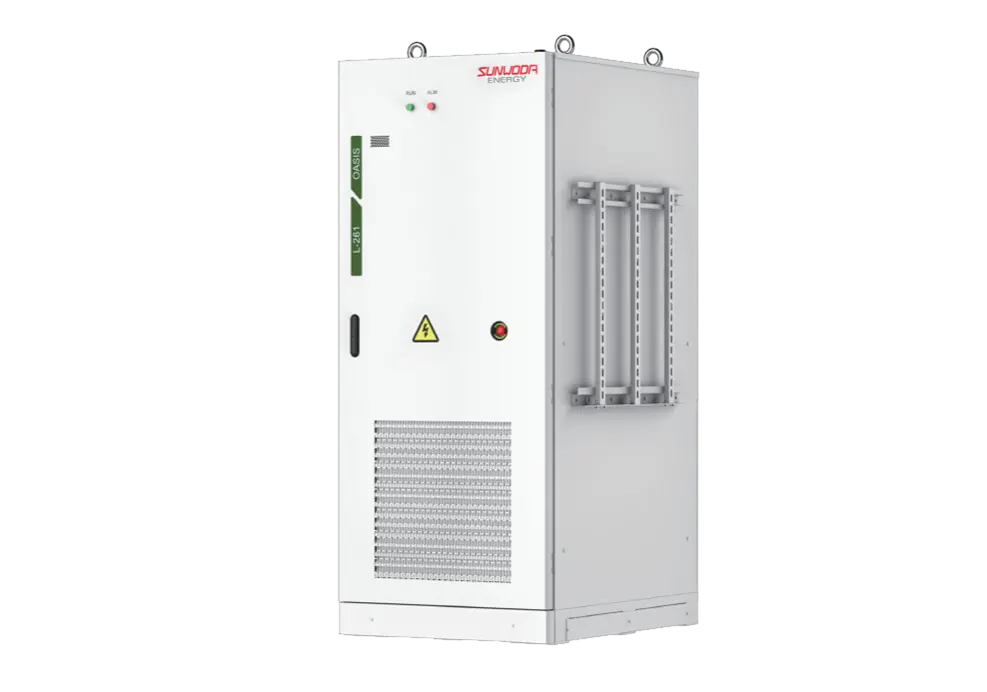

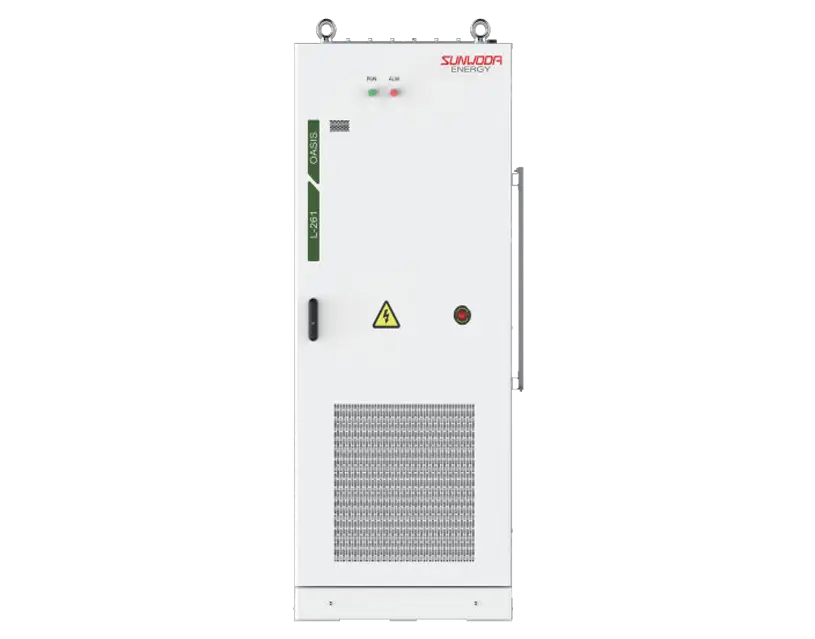

The OASIS Power provides large-scale ESS for commercial industries, integrating Sunwoda’s high-density battery racks, and EMS into a single turnkey solution.

Technical Specifications:

Product Model	CIESS-261
DC Side
Cell Type	LFP
Cell Specification	3.2V 314Ah
PACK Capacity (kWh)	52.2496
No. of Packs	5
Rated Capacity (kWh)	261.248
Rated Voltage (V)	832
Voltage Range (V)	702~936
System Parameter
Communication Interface	CAN/RS485/Internet/WiFi
Cooling Mode	Liquid cooling
Installation Mode	Outdoor
Protection Grade	IP55
Ambient Temperature	-30℃～+55℃ (＞45℃ derating)
Ambient Humidity	5%~95%, No Condensation
Altitude	2000m
Size (W *D* H)	980*1390*2350mm
Weight	＜2300kg



Key Features:

• Utility-grade solution
• Renewable integration support
• Peak shaving, load shifting, frequency regulation

Certifications:

• IEC
• CE
• UL9540
• UN38.3

About Manufacturer:

Sunwoda Energy, a subsidiary of Sunwoda Group (SZ300207), is a globally leading enterprise in Residential, Commercial & Industrial, Utility, and Smart Energy Storage solutions. With 28+ years in the new energy industry, Sunwoda ranks among the top 10 global battery companies with 246 GWh total production capacity and 50,000+ staff worldwide
