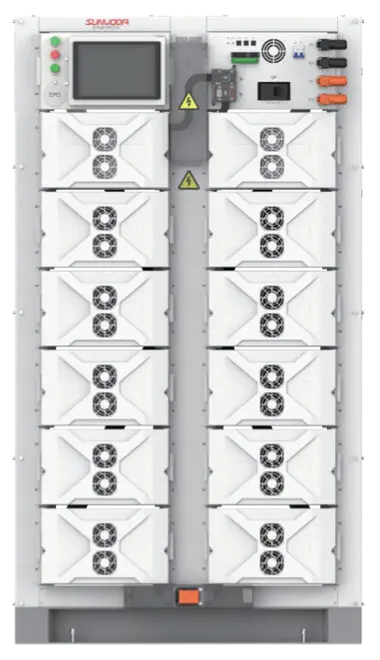

The OASIS Rack Pro is designed for higher density and enhanced performance, enabling C&I and small utility deployments.

Technical Specifications:

Product Model	CIES-107-RP	CIES-125-RP	CIES-143-RP	CIES-161-RP	CIES-179-RP	CIES-197-RP
Cell specification	3.2V 280Ah
Cell type	LFP
PACK specification	1P20S, 64V, 17.92kWh
PACK quantity	6	7	8	9	10	11
Rated capacity	107.52kWh	125.44kWh	143.36kWh	161.28kWh	179.2kWh	197.12kWh
Rated voltage	384V	448V	512V	576V	640V	704V
Voltage Range	336~432V	392~504V	448~576V	504~648V	560~720V	616~792V
Max. Charge and Discharge Ratio	1C	1C	1C	1C	1C	1C
Communication mode	CAN, RS485, Internet
Cooling method	Intelligent air cooling
Installation method	Indoor
Protection degree	IP20
Ambient temperature	0°C~+55°C (>45°C derating)
Ambient humidity	0~95%RH, non-condensing
Altitude	3000m
Dimension(W*D*H)	1160*976*2060mm
Weight	<2100kg

Key Features:

• Higher density than standard Rack
• Safe and reliable LFP technology
• Modular expansion capability

Certifications:

• IEC
• CE
• UN38.3

About Manufacturer:

Sunwoda Energy, a subsidiary of Sunwoda Group (SZ300207), is a globally leading enterprise in Residential, Commercial & Industrial, Utility, and Smart Energy Storage solutions. With 28+ years in the new energy industry, Sunwoda ranks among the top 10 global battery companies with 246 GWh total production capacity and 50,000+ staff worldwide.
