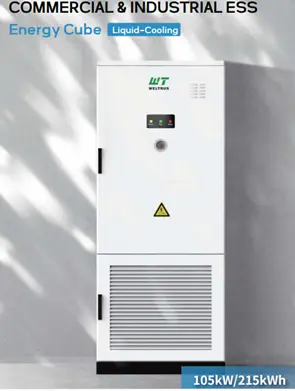

The Energy Cube Liquid-Cooling 105kW/215kWh is a high-performance commercial and industrial energy storage system featuring an advanced liquid cooling system for optimal battery temperature control, extended life, and enhanced safety. It integrates a powerful LFP battery bank, inverter, fire suppression, and EMS, enabling efficient peak shaving, demand control, reactive power adjustment, and off-grid operation. The modular design supports scalable installations, while cloud-based control offers 24/7 real-time monitoring, strategy optimization, and rapid response in case of anomalies.

Specifications:

Parameter	Value
Battery Type	LFP
Configuration	1P240S
Rated Capacity	280Ah
Rated Energy	215kWh
Rated Voltage	768V
Rated Power	105kW
Charge/Discharge C-rate	0.5P
Operating Voltage Range	600V – 876V
Cooling Method	Liquid cooling
Coolant	Ethylene glycol solution (50%)
Cycle Life	6000 cycles
Fire Protection	Perfluorohexanone + Aerosol + Water suppression
Detector Type	Temperature, smoke, CO
Rated AC Power	105kW
AC Overload Capability	115.5kW
Wiring Method	Three-phase, four-wire
Allowed Grid Voltage	380V (-20%~+15%)
Grid Frequency	50Hz/60Hz ±2.5Hz
Total Harmonic Distortion	≤3% (full load)
Power Factor	-0.99 / -1 ~ 1
Conversion Time	<100ms
Max Efficiency	≥98%
Operating Temp	-20°C to 50°C (derating above 45°C)
Noise Level	≤75dB
Dimensions (W×D×H)	1000 × 1300 × 2500 mm
Weight	~2.6t
Protection Level	IP65 (battery), IP54 (electrical)
Humidity	0–95% (non-condensing)
Altitude	≤2000m (derating above 2000m)
Communication	CAN, Ethernet
Protocol	ModbusTCP/RTU
Certifications	GB/T36276-2018, IEC62619

Typical Applications:

• Commercial and industrial peak load reduction
• Renewable energy integration with PV systems
• Backup power for critical facilities and manufacturing
• Microgrid deployment with voltage and frequency regulation
• EV charging station energy buffering

Packing List:

• 1 × Energy Cube Liquid-Cooling ESS cabinet (105kW/215kWh)

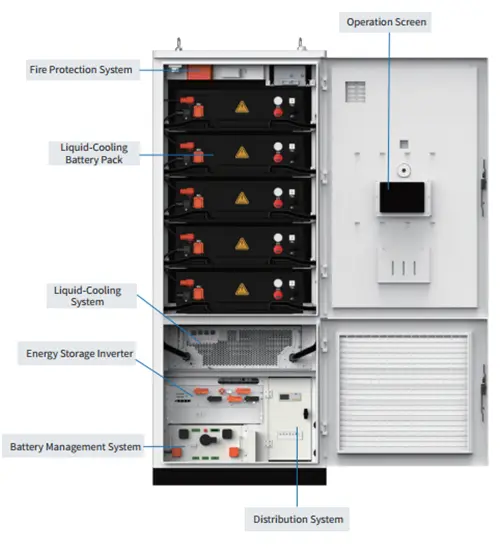

• Integrated inverter, EMS, BMS, cooling, and fire protection systems
• Installation manual & warranty documents



About Manufacturer:

WELTRUS (Hangzhou Weltrus New Energy Technology Co., Ltd.) is part of the Welfull Group, established in 1993, with an annual operating income exceeding 5.6 billion yuan. The company leverages its strong industrial and financial foundation in Zhejiang Province, China. It stands at the forefront of clean energy development with core competencies in photovoltaics, new energy vehicles, and energy storage applications. R&D & Innovation: Weltrus brings extensive R&D experience across several sectors—including energy storage, photovoltaic technology, new energy vehicle systems. This deep technical expertise drives continuous product innovation and upgrades.
