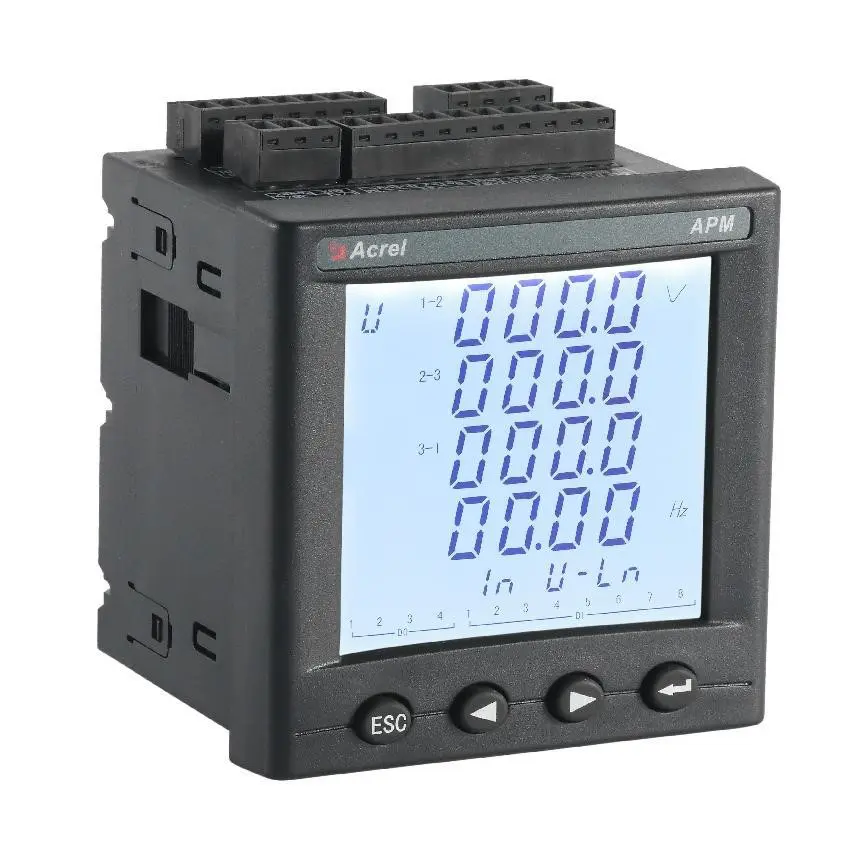

Acrel Three Phase Power Quality Meter APM8xx

Acrel Three Phase Power Quality Meter APM8xx

  • Measurement: 3-phase kWh, kVarh, kW, I, U, Hz, Cosφ, Current&Voltage Unbalance, 2~63rdHarmonic, Real-time&Max Demand, Zero-sequence Current, 4-quadrant Energy and etc
  • Current Rating:-/5A AC; -/1A AC (According to CTs)
  • Voltage Rating: 100V, 110V, 400V, 690V AC
  • Frequency: 45~65Hz
  • Accuracy: Up to 0.2S (Optional)
  • Communication (Main Body): RS485 (MODBUS-RTU)
  • Communication (Expanded): PROFIBUS-DP; Ethernet; Secondary RS485
  • Extra Function: 8DI/2DO; 8AI/4AO; SOE (with standard 4GB SD Card); Multi-rate
  • Display: LCD Display
  • Dimension: 96*96*90mm (L*W*H)
  • Installation:Panel Embedded (Cut-out –92*92mm)
  • Power Supply: 85~265V AC/DC; 115~415V AC/DC
  • Standard&Certificate:CE

Share This Product :

Get a Quote
  • Measurement: 3-phase kWh, kVarh, kW, I, U, Hz, Cosφ, Current&Voltage Unbalance, 2~63rdHarmonic, Real-time&Max Demand, Zero-sequence Current, 4-quadrant Energy and etc
  • Current Rating:-/5A AC; -/1A AC (According to CTs)
  • Voltage Rating: 100V, 110V, 400V, 690V AC
  • Frequency: 45~65Hz
  • Accuracy: Up to 0.2S (Optional)
  • Communication (Main Body): RS485 (MODBUS-RTU)
  • Communication (Expanded): PROFIBUS-DP; Ethernet; Secondary RS485
  • Extra Function: 8DI/2DO; 8AI/4AO; SOE (with standard 4GB SD Card); Multi-rate
  • Display: LCD Display
  • Dimension: 96*96*90mm (L*W*H)
  • Installation:Panel Embedded (Cut-out –92*92mm)
  • Power Supply: 85~265V AC/DC; 115~415V AC/DC
  • Standard&Certificate:CE
  About Manufacturer: Acrel Co., Ltd., established in 2003, is a high-tech enterprise specializing in energy efficiency management and electrical safety solutions. With a comprehensive product line ranging from cloud platform software to sensors, Acrel offers smart energy meters, power sensors, and protection devices. Their products are widely utilized across industries such as electric power, communications, rail transit, petrochemical, and construction. In 2012, Acrel was listed on the Growth Enterprise Market with the stock code 300286.SZ. The company is committed to providing innovative and reliable energy management solutions to its global clientele.
