Cable Test Set

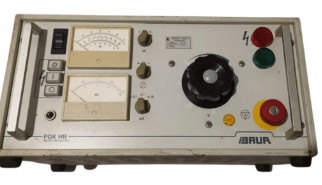

BAUR, Austria PGK 110 HB BAUR AC/DC HV test set 110 kV DC & 80 kV AC

The BAUR PGK 110 HB AC/DC HV test set is used to generate continuously adjustable test voltages:

  • DC voltages with positive or negative polarity
  • AC voltages at mains frequency

Share This Product :

The BAUR PGK 110 HB AC/DC HV test set is used to generate continuously adjustable test voltages:
  • DC voltages with positive or negative polarity
  • AC voltages at mains frequency
The test set consists of an operating unit and an HV unit. The operating unit contains all operating and display elements and allows the HV unit to be controlled from a safe distance. Depending upon the operating mode, a rectifier or resistance rod is used in the HV unit. The polarity of the test DC voltage can be reversed by rotating the rectifier rod in the HV unit. All devices in the PGK HB series are short-circuit proof and have a current-compensated voltage measuring function.   Features
  • Test voltages up to AC 80 kVrms or DC ?110 kV
  • Oil-insulated maintenance-free high voltage transformer
  • Continuously adjustable output voltage
  • Safety control unit according to EN 50191
  • Voltmeter with 2 measurement ranges
  • Ammeter with 3 measurement ranges
  • Thermal overcurrent switch-off
  • Robust two-part structure

No additional information.
