Breaker Timing Tester

Breaker Timming Tester Mikami ZSK-3

Mikami ZSK-3 circuit breaker timing tester for measuring breaker operating times. Second-hand unit.

Share This Product :

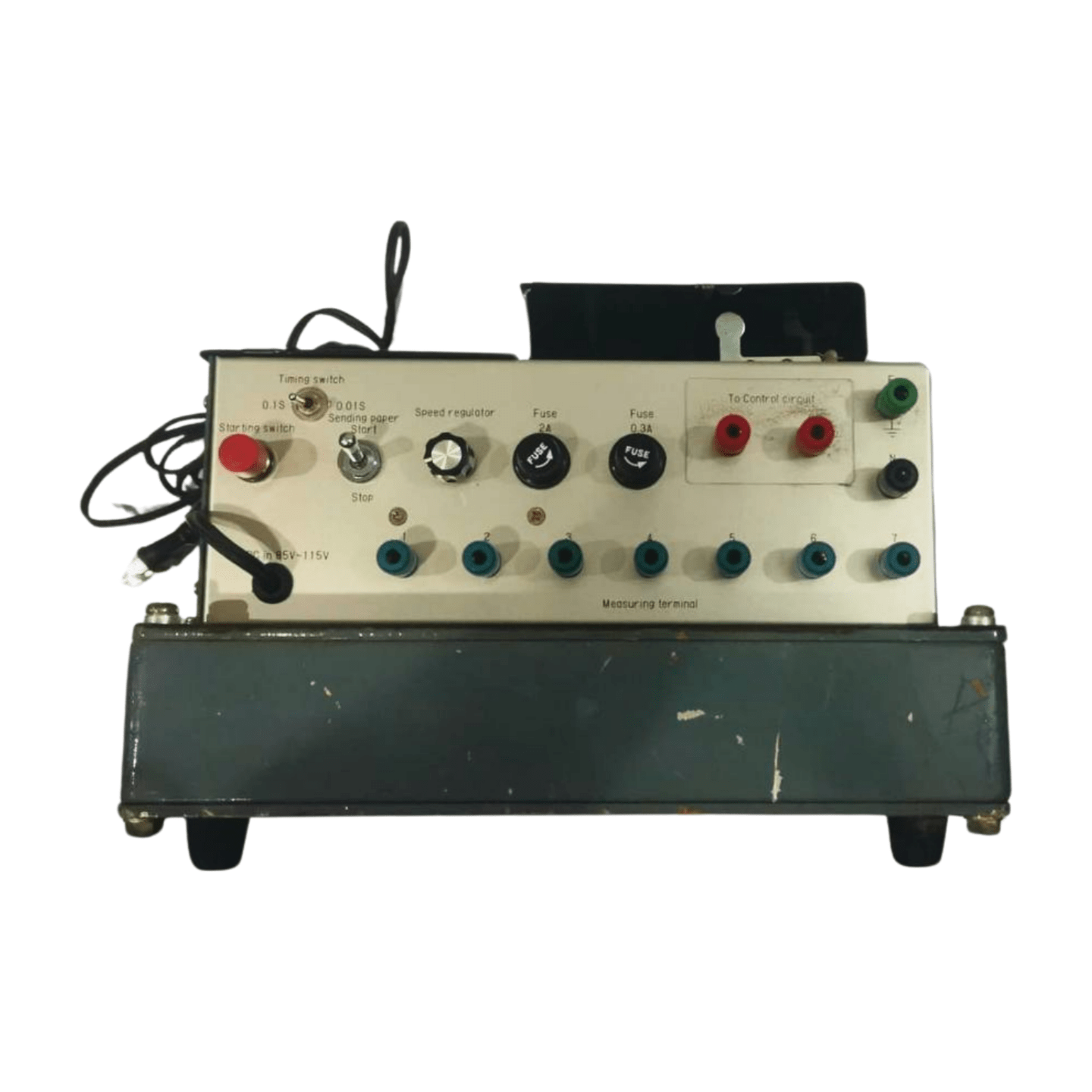

A Mikami ZSK-3 circuit breaker timing tester, for measuring the operating times of high and medium voltage circuit breakers.

Why breaker timing is measured

Every protection setting in a substation is graded on an assumption about how long the breaker takes to clear a fault — typically three to five cycles for a modern HV breaker.

If the mechanism slows through wear, dried lubricant, weak springs or a tired trip coil, that assumption quietly stops being true. The consequences compound:

  • Grading margins are eroded, so an upstream device may operate before the local breaker clears — tripping far more of the network than necessary
  • Fault energy rises in proportion to clearance time, increasing damage at the fault and arc energy in the switchgear
  • On a breaker that is genuinely slow, the interrupter may fail to clear at all

What is measured

  • Opening and closing time per pole, from the trip or close command to contact separation or touch
  • Pole discrepancy — the spread between phases, which matters for both fault clearance and switching duty
  • Close-open time for autoreclose duty
  • Contact bounce on closing
  • Coil current profile, which reveals mechanism problems before timing degrades

Assessing the result

Compare against the manufacturer specification and against previous tests on the same breaker. A trend toward slower operation is actionable long before a limit is exceeded.

Condition: second-hand unit. Send the application and required ratings with your enquiry, and IndusGrove will confirm condition, accessories included and availability.
