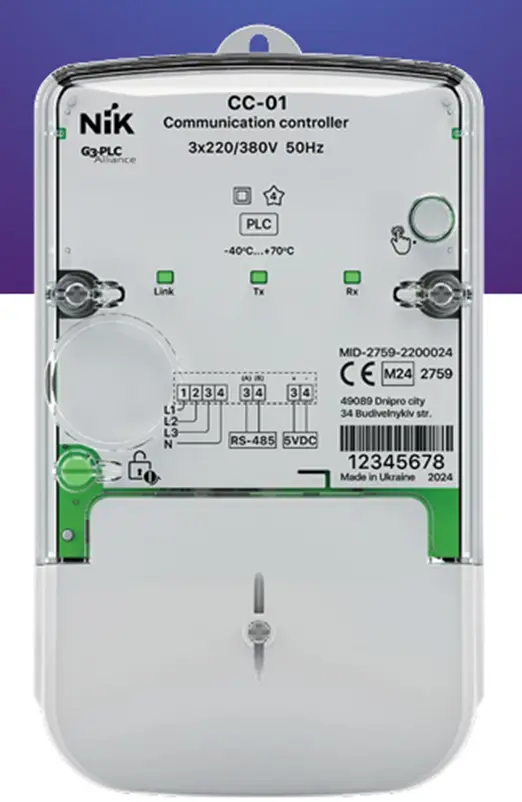

The CC-01 is a reliable and efficient communication controller designed to coordinate and repeat data signals within AMI and smart metering infrastructures. Equipped with advanced PLC (Power Line Communication) capabilities using both DCSK and G3-PLC modulation standards, this device ensures stable and secure data transmission across single or multiple frequency bands. With DIN rail mounting, a wide input voltage range, and built-in 2.4 GHz RF module, the CC-01 is ideal for smart grid networks requiring dependable signal coordination and communication extension.
Specifications
Nominal Voltage: 220 V
Operating Voltage Range: 143 – 253 V
Nominal Frequency: 50 Hz
Power Consumption: ≤ 20 W
Radio Module Frequency: 2.4 GHz
PLC Operating Frequency Band: 65 – 95 kHz
PLC Output Signal Level (max): 130 dBmcV
PLC Modulation Type: G3-PLC (OFDM PHY)
Internal Power Supply Output Voltage: 5 V
Max Load Current (Internal Supply): 0.2 A
Operating Temperature Range: -40°C to +70°C
Weight: ≤ 1 kg
Mounting: DIN rail compatible
Device Functions: Coordinator and Repeater (in one or two frequency bands)
Model Variants:
CC-01-10
CC-01-10 R
CC-03-10 (Band 1)
CC-03-10 (Band 2)
Features
Supports both DCSK and G3-PLC communication protocols
Operates as coordinator and repeater in 1 or 2 frequency ranges
RF-enabled for 2.4 GHz wireless communication
High compatibility with NIK smart metering devices
Robust design with wide operating temperature and voltage range
Compact and suitable for DIN rail installations
Stable performance in harsh environmental conditions
Applications
AMI communication hubs and relay stations
Smart grid data transmission coordination
Remote and distributed smart metering networks
Industrial and commercial energy monitoring systems
Signal boosting and expansion in multi-node networks
About the Manufacturer
NIK is one of the largest energy technology enterprises in Eastern Europe, established in 1997. The company specializes in the design and production of advanced metering systems, industrial controllers, and integrated AMI solutions. With an in-house engineering and R&D department, NIK delivers innovative energy management tools for utilities, businesses, and infrastructure projects.
