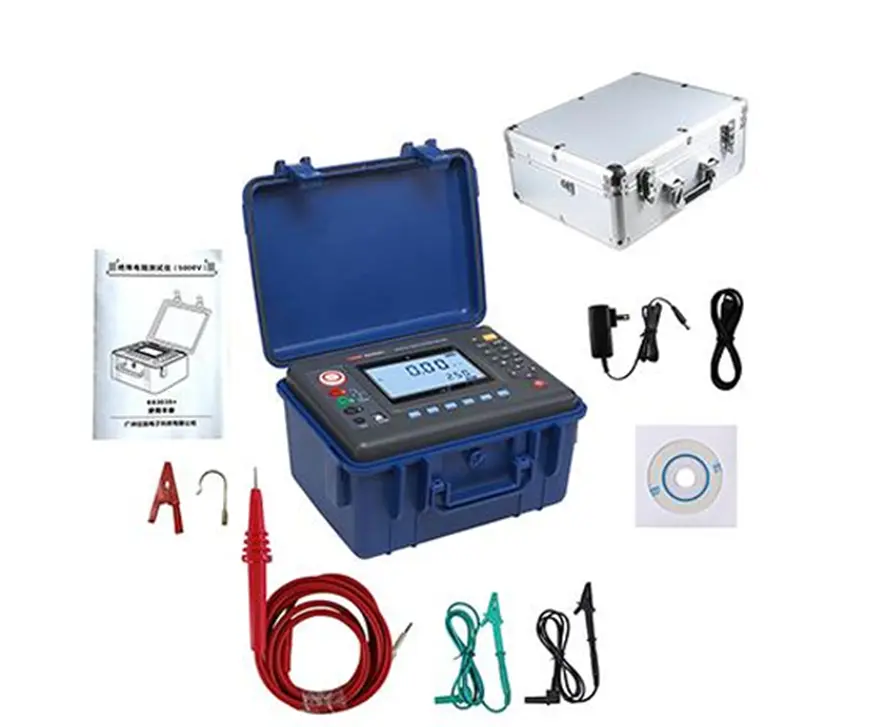

The ES3035+ is engineered for high-voltage insulation testing of transformers, motors, and cables. Features include auto-discharge, 12V rechargeable battery, and 5mA short-circuit current (at 5000V). Ideal for power utilities and industrial maintenance.
Specifications:
Insulation Resistance:
Range: 0.01MΩ–2000GΩ (±3% accuracy).
Test Voltages: 100V/250V/500V/1000V/2500V/5000V (±3% accuracy).
Voltage Measurement:
DC: 0–1000V (0.1V resolution).
AC: 0–750V (0.1V resolution).
Power: 12V battery (30mA standby, 200mA max during testing).
Test Leads: 3m red high-voltage rod, 1.5m black/green leads.
Safety: AC3kV/50Hz withstand voltage, IP54 rated.
About Manufacturer:
Fuzrr Technology (Guangzhou Zhengneng Electronic Technology Co., Ltd). is a professional manufacturer engaged in R&D, production and sales. The factory is located in Guangzhou, the metropolis of China’s International Greater Bay Area Economic Circle, near Hong Kong, Macau, and Shenzhen in the south. Mainly manufacture Utility locator, Cable identification, multimeters, insulation resistance testers, grounding resistance testers, power quality monitors, megohmmeters, Battery internal resistance testers, clamp power meters, high voltage Current clamp meters and more!
We have a professional engineer technical team, efficient sales team and competitive price advantage, exporting to more than 80 countries and regions.
After more than 15 years of development, we have gained rich experience in manufacturing and exporting, and have cooperated with global brand agents. The workshop is equipped with automatic production lines, with more than 100 skillful workers, automatic plug-in machinery and multifunctional testing equipment. Our R&D department provides strong technical support and accepts OEM, ODM for large order projects.
