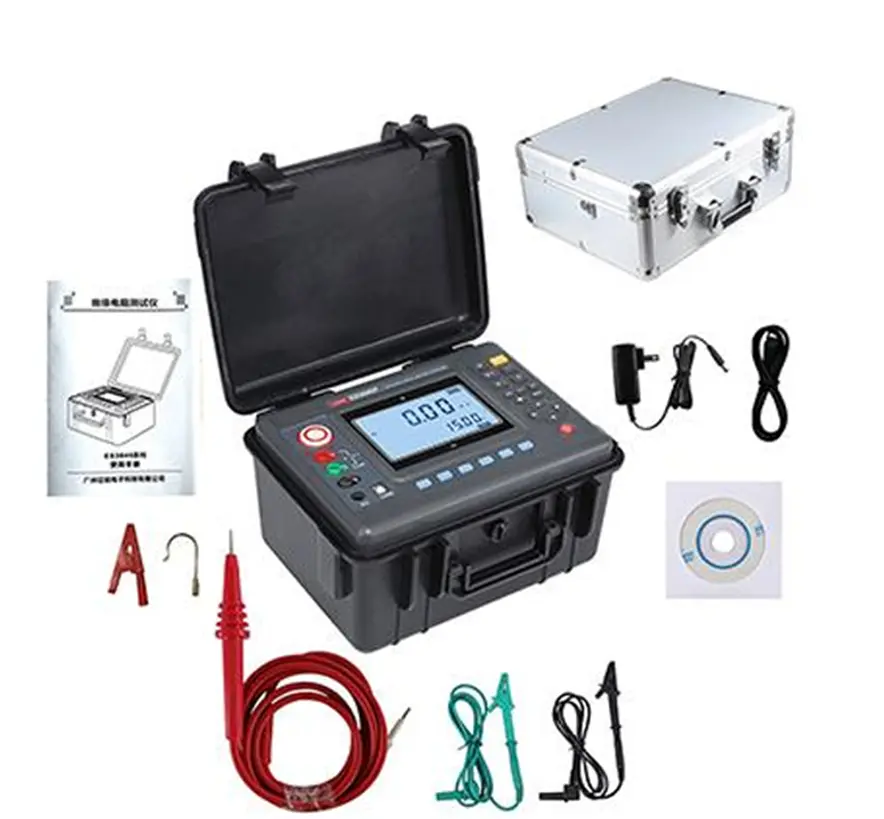

The ES3045 Series is engineered for high-voltage insulation testing of transformers, motors, and cables. Features include auto-discharge, 12V rechargeable battery, and 6mA short-circuit current. With step-voltage adjustment (e.g., 15kV model can output 12kV), it offers unparalleled flexibility for industrial and utility applications.
Specifications:
Key Models:
Model
Max Voltage
Resistance Range
ES3045
5kV
0.01MΩ–10TΩ
ES3045E
10kV
0.01MΩ–35TΩ
ES3045F
15kV
0.01MΩ–50TΩ
Power: 12V battery (30mA standby, 200mA max during testing).
Environmental:
Operating: -10°C to +50°C, <85% humidity.
Storage: -15°C to +55°C, <90% humidity.
Dimensions/Weight:
Meter: 240mm×188mm×85mm / 2340g (with battery).
Test Leads: 3m red high-voltage rod, 1.5m black/green leads.
Safety: AC3kV/50Hz withstand voltage, IP54 rated.
