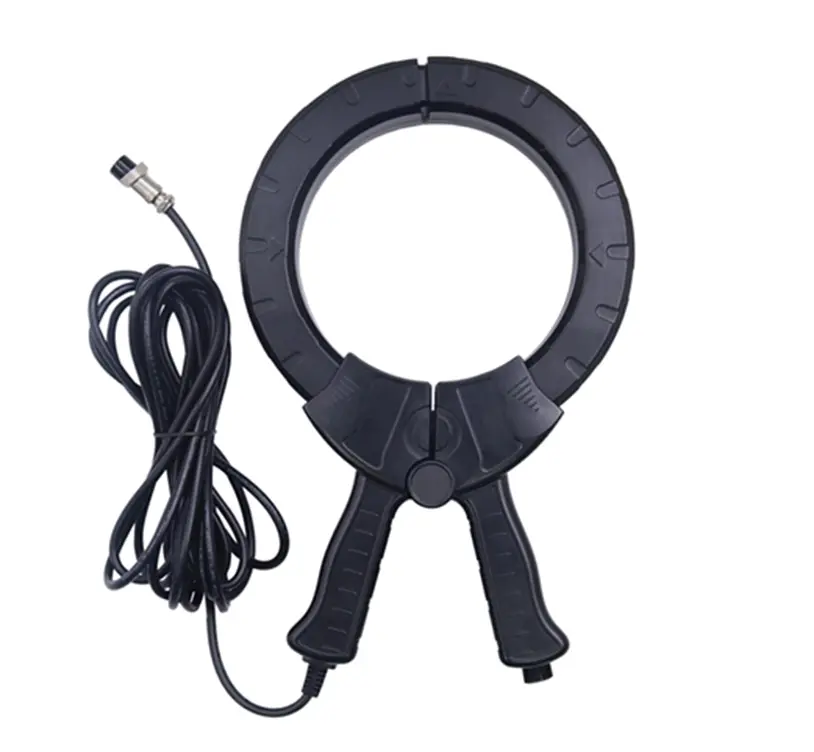

The FR125 Clamp Current Sensor is a portable, high-precision AC current converter featuring advanced CT technology and a large 125mm clamp opening for quick, convenient measurements. It provides safe non-contact measurement and can operate with a variety of instruments including electricity meter field calibrators, harmonic analyzers, multifunction meters, oscilloscopes, and double-clamp ground resistance testers. Designed for continuous energized environments, the FR125 enables accurate measurement of current, harmonics, phase, and energy parameters, making it ideal for substations, power plants, industrial sites, and electrical maintenance departments

Specifications:

Measurement Range:

• AC 0.0A–600A

Resolution:

• AC 0.1A

Accuracy:

• ±1% FS (50Hz/60Hz; 23℃±2℃)

Phase Error:

• ≤3° (50Hz/60Hz; 23℃±2℃)

Turn Ratio:

• 160:1 (customizable)

Clip Size:

• Φ125mm

Weight:

• 1000g

Boundary Dimensions:

• 306mm × 192mm × 50mm

Output Interface:

• Aviation plug

Output Cable Length:

• 3m

Output Method:

• Current induction output

Shell Material:

• ABS resin, flame retardant grade 94V-0

Voltage Between Lines:

• 600V AC (insulated wire)

• 30V AC (exposed wire)

Working Environment:

• -25°C to +55°C

Insulation Resistance:

• 100MΩ @ 500V DC

Dielectric Strength:

• AC 3700V/rms (between core and enclosure)

Measured Current Frequency:

• 45Hz–65Hz

Frequency Range:

• 10Hz–100kHz

Included Accessories:

• 1 × Sensor
