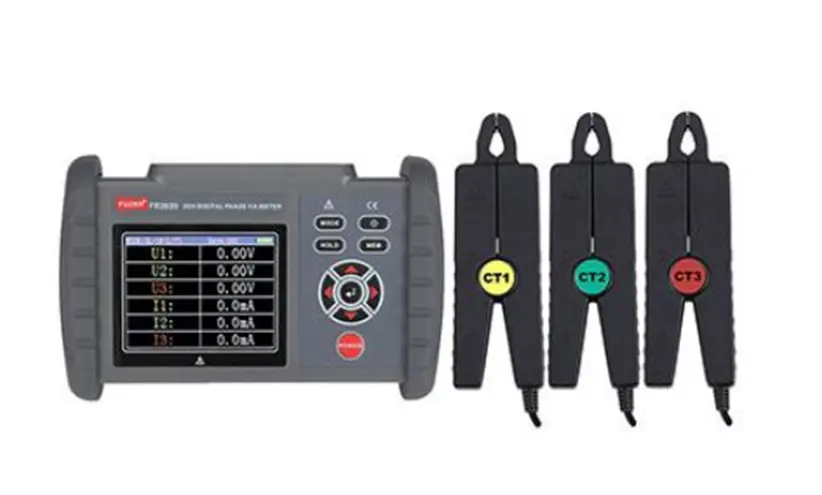

The FR2020B Three-phase Digital Phase Voltammeter by FUZRR Technology is a versatile and intelligent handheld device designed for accurate three-phase power system analysis. It supports direct measurement of AC voltage, current, phase angles between voltages and currents, frequency, active power, reactive power, apparent power, and power factor. With additional functions such as transformer wiring group identification, inductive/capacitive circuit detection, and energy meter wiring verification, it is a critical tool for maintenance, inspection, and diagnostics in power utilities, industries, and laboratories. The FR2020B features a large-caliber 50mm clamp, color LCD display, 400-group data storage, USB data upload, and a robust silicone protective cover, offering reliability and portability for field operations.

Specifications:

Technical Details:

• Measurement Functions: Three-phase AC voltage, current, phase angles, frequency, phase sequence, active/reactive/apparent power, power factor, transformer wiring group detection, inductive/capacitive circuit identification, secondary circuit and bus differential system testing
• Voltage Range: AC 0.00V–600V; Resolution: 0.01V; Accuracy: ±0.5% FS
• Current Range: AC 0.0mA–1000A; Resolution: 0.1mA; Accuracy: ±0.5% FS
• Phase Angle Range: 0.0°–360.0°; Resolution: 0.1°; Accuracy: ±1°
• Frequency Range: 45.00Hz–65.00Hz; Resolution: 0.01Hz; Accuracy: ±0.5Hz
• Active Power Range: 0.0W–600kW; Resolution: 0.1W; Accuracy: ±(3%rdg+3dgt)
• Reactive Power Range: 0.0VAR–600kVAR; Resolution: 0.1VAR; Accuracy: ±(3%rdg+3dgt)
• Apparent Power Range: 0.0VA–600kVA; Resolution: 0.1VA; Accuracy: ±(3%rdg+3dgt)
• Power Factor Range: -1 to +1; Resolution: 0.001; Accuracy: ±0.03
• Current Vector Sum: 0mA–3000A; Resolution: 1mA
• Phase Sequence: Positive and inverted indication via U1, U2, U3 or I1, I2, I3 flashing sequence
• Detection Rate: Approx. 2 seconds per measurement
• Data Hold: Available during testing by pressing the HOLD key
• Data Storage: 400 groups
• USB Interface: Available for data upload to computer

Display and Physical Details:

• Display Mode: Color LCD, 72mm × 55mm
• Meter Size: 187mm × 119mm × 48mm
• Jaw Size: Φ50mm
• Protective Cover: Silicone cover included
• Voltage Detection: Low battery voltage alert when below 3.2V
• Automatic Shutdown: Approx. 15 minutes of inactivity
• Backlight: Yes, suitable for dark environments

Power Supply and Battery:

• Power Supply: 3.7V lithium rechargeable battery
• Power Consumption: Max 250mA

Environmental Conditions:

• Working Temperature and Humidity: -10℃ to 40℃; ≤80%RH
• Storage Temperature and Humidity: -10℃ to 60℃; ≤70%RH

Electrical Safety:

• Input Resistance: Test voltage input impedance 1MΩ
• Insulation Resistance: ≥100MΩ between instrument line and housing
• Pressure Resistance: Withstands 1000V/50Hz sine wave AC for 1 minute between circuit and enclosure
• Safety Standards: IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, Pollution Degree 2

Included Accessories:

• 1 × Instrument Host
• 3 × Large Diameter Current Clamps
• 1 × USB Communication Cable
• 1 × Monitoring Software (CD-ROM)
• 1 × Instrument Box
• 4 × Test Lines (Yellow, Green, Red, Black)
• 1 × Charger
• 1 × Manual and Warranty Card

About Manufacturer:

FUZRR Technology (Guangzhou Zhengneng Electronics Technology Co., Ltd.) is a professional manufacturer specializing in the research, development, production, and sales of electrical testing instruments. Located in Guangzhou, China, near Hong Kong and Shenzhen, FUZRR serves over 80 countries worldwide. The company offers products such as Utility Locators, Cable Identifiers, Multimeters, Insulation Resistance Testers, Ground Resistance Testers, Power Quality Monitors, Battery Internal Resistance Testers, and more. FUZRR is equipped with advanced production lines, a skilled workforce, and extensive R&D support. They offer OEM and ODM services, ensuring high-quality and customized solutions for global markets
