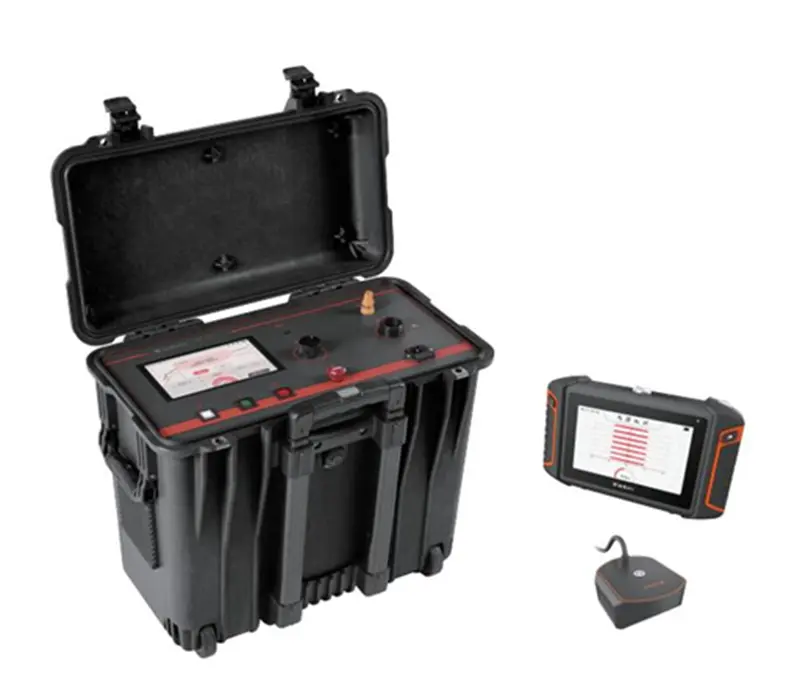

HC-10 Sheath Fault Location System

  • Output voltage: 0–10kV DC
  • Output current: Up to 150mA
  • Power supply: AC 90–240V or 615Wh built-in battery
  • Operating temperature: -20°C to +55°C
  •  Insulation resistance measurement: 0–650 MΩ

Share This Product :

TECHNICAL DATA
  • Output Voltage: 0–10kV DC
  • Output Current: 150mA
  • Test Voltage: 0 to –10kV DC
  • Insulation Resistance: 0–650 MΩ
  • Max Test Object Capacity: 10 µF
  • Pinpointing Voltage: 0–10kV DC (pulsed, selectable ratios)
  • Power Supply: AC 90–240V, 50/60Hz or built-in 615Wh battery
  • Battery Life: 6 hours
  • Display: 8000×480 LCD, 1000 cd/m² brightness
  • Dimensions: 500×457×305mm
  • Weight: 18.5kg
  • Protection Rating: IP54
  • Operating Temperature: -20°C to +55°C
Customer Benefits
  • Combines testing, burning, and pinpointing functions in one unit
  • Multiple signal reception modes for different installation types
  • Touch screen with rotary encoder for intuitive user operation
  • Auto evaluation for recommended testing methods
  • Portable, weather-resistant design with long battery life
About Manufacturer:
Founded in 2008, Xianheng intl (Tanbos) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Tanbos is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East.
  • Designed for complex sheath fault detection in direct burial, pipes, or tunnel-laid cables
  • Enclosed in a rugged, portable suitcase with IP54-rated protection
