Hi-Pot K & M Electronics Puncture PM-555OT 5KV

K&M Electronics PM-5550T 5 kV puncture and withstanding voltage tester. Second-hand unit.

Share This Product :

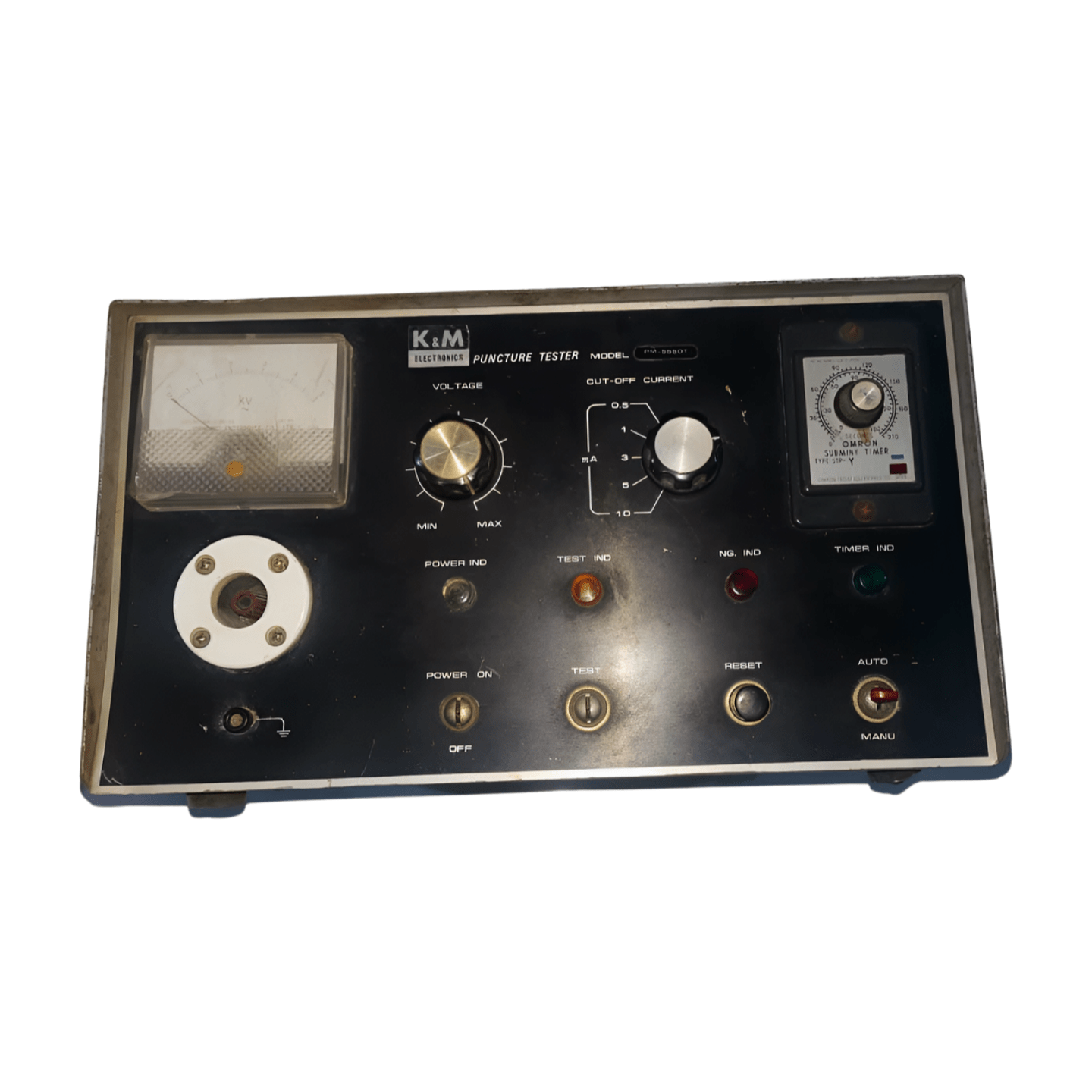

A K&M Electronics PM-5550T puncture tester, 5 kV, for dielectric strength testing of insulating materials and components.

Puncture testing versus withstand testing

The two are related but ask different questions.

A withstand test applies a defined voltage and asks whether the sample survives — a pass or fail against a specification. A puncture or breakdown test raises the voltage until the sample fails, and records the voltage at which it did. The result is a measured property, not a verdict.

That makes puncture testing a materials and quality characterisation exercise rather than a production screen. It is destructive by design, so it is applied to samples and batches rather than to every unit.

Where it is used

  • Incoming inspection of insulating film, sheet, tape and varnish
  • Verifying the dielectric strength of moulded and cast insulating parts
  • Batch quality control in transformer, motor and cable manufacturing
  • Failure investigation, establishing whether a material met its specification

What determines a valid result

Electrode geometry, the rate at which voltage is raised, sample thickness, temperature and humidity all affect breakdown voltage substantially. Results are only comparable when the test method is held constant, which is why the applicable material standard specifies all of them.

Condition: second-hand unit. Send the standard you are testing to, the required test voltage and whether AC, DC or both are needed, and IndusGrove will confirm condition, accessories and availability.
