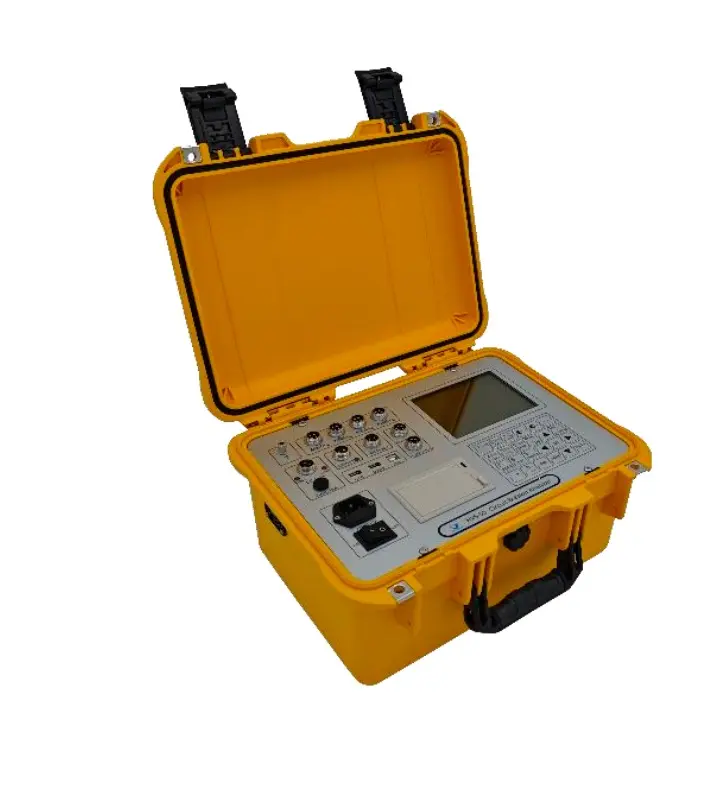

HVS-50T Circuit Breaker Analyzer

  • Timing and travel analyzer
  • Coil and motor supply of 2.4 kW
  • Rotary, Linear, and Universal transducers as standard
  • One-step connection for nearly all test results
  • Software includes a wide range of CB models
  • Supports PIR (Pre-insertion resistor) function
  • Portable and easy to carry
  • Automatic analysis

Share This Product :

The HVS-50T is an advanced Circuit Breaker Analyzer designed to carry out complete tests on medium- and high-voltage circuit breakers. With a simple one-step connection, it enables fast, easy, and automatic testing. It supports a wide range of measurements such as timing, motion, travel, coil current, vibration, and minimum pickup voltage. Ideal for modern substations and maintenance crews, it ensures quick and efficient diagnostics.
Applications:
  • Timing and travel analysis
  • Motion and speed measurements
  • Coil current analysis (close/open)
  • Vibration measurement
  • Minimum pickup voltage testing
  • Medium and high-voltage CB testing
Specifications:
Time Test
  • Range: 0–16 s
  • Resolution: 0.1 ms
  • Accuracy: ±(0.001% + 2 words)
Travel Test
  • Range: 0–800 mm
  • Resolution: 0.1 mm
  • Accuracy: 0.5% ± 0.1 mm
Speed Test
  • Range: 0.01–20.00 m/s
  • Resolution: 0.01 m/s
  • Accuracy: 1%
Safety Performance
  • Insulation resistance: >2 MΩ
  • Leakage current: <3.5 mA
  • Dielectric strength: AC 1500V, 50Hz, 1 min
DC Power Supply
  • Adjustment Range: 0–270 V
  • Max Instantaneous Current: 20 A
  • Accuracy: ±(0.01 + 1 word)
Power Input
  • Voltage: 200–240 VAC, 50/60 Hz
Environmental Conditions
  • Operating Temperature: -10°C ~ 50°C
  • Humidity: ≤90%
Build and Storage
  • Built-in high-speed thermal printer
  • Real-time data storage
  • Size: 380 × 280 × 200 mm
  • Weight: 7 kg (excluding measuring cables)
About Manufacturer:
Founded in 2008, Xianheng intl (Elecgene) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Elecgene is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East.

Accessories:

  • 1 Transport case
  • 1 Set of Plug Test Cables (7 × 4 m)
  • 1 Set of Extension Test Cables (7 × 8 m)
  • 1 Set of Plug Transmit Cables (2 × 0.35 m)
  • 1 DC Control Cable (1 × 6 m)
  • 1 DC Output Cable (1 × 6 m)
  • 1 Rotary transducer
  • 1 Linear transducer (50 mm)
  • 1 Universal transducer
  • 1 Transducer Connection Cable (1 × 6 m)
  • 1 Bracket
  • 2 Shorted Cables (2 × 2 m)
  • 1 Ground Cable (1 × 2 m)
  • 1 Power Cable
  • 1 Accessories Box
  • 2 Print Papers
  • 2 Fuses
