Megger MIT520 Insulation Resistance Tester

Megger MIT520 high-voltage insulation resistance tester for cables, machines and switchgear, with PI and DAR diagnostics. Second-hand unit.

Share This Product :

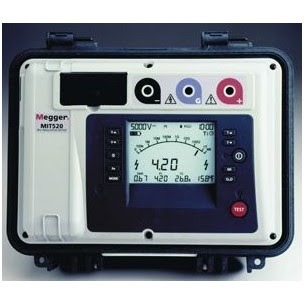

A Megger MIT520 insulation resistance tester from the MIT500 series — the high-voltage diagnostic insulation testers used on cables, rotating machines, transformers and switchgear.

Beyond a pass or fail number

A single insulation resistance reading is almost meaningless on its own. It varies with temperature, humidity, surface contamination and how long the voltage has been applied. What tells you about the condition of the insulation is how the reading behaves over time:

  • Polarisation Index (PI) — the ratio of the 10-minute reading to the 1-minute reading. Good, dry insulation keeps absorbing charge and the resistance climbs. Wet or contaminated insulation reaches a plateau almost immediately, giving a PI near 1.
  • Dielectric Absorption Ratio (DAR) — the 60-second to 30-second ratio, the same principle over a shorter test
  • Step voltage testing — resistance measured at increasing voltages. Sound insulation gives a consistent reading; insulation with cracks or voids breaks down non-linearly as stress rises.

Why this matters on a motor or generator

A machine with a PI of 1.1 and a “good” absolute resistance is wet, and will fail when it is energised. A machine with a lower absolute reading but a healthy PI is usually simply warm. The absolute number alone would rank them the wrong way round.

Typical use

Acceptance and maintenance testing of MV cables, motor and generator windings, transformer windings and switchgear insulation.

Condition: second-hand unit. IndusGrove will confirm functional test status, accessories included and calibration state on request.
