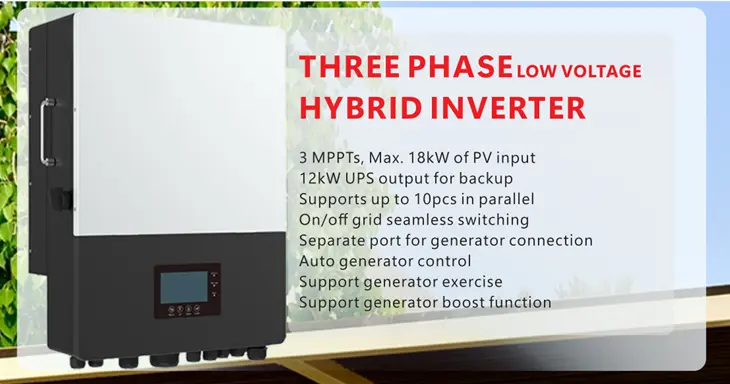

The LVTOPSUN Three Phase Low Voltage Hybrid Inverter is designed for high-efficiency solar energy utilization and reliable backup power. Equipped with three independent Maximum Power Point Trackers (MPPTs), it ensures optimal PV array performance under variable conditions. With a maximum PV input of 18kW and a 12kW UPS output, this inverter is ideal for large residential and small commercial installations requiring uninterrupted power. Its seamless on/off-grid switching guarantees a smooth transition between power sources. The inverter includes a dedicated generator connection port, automated generator control, and advanced features like generator exercise and boost support. Parallel connection capability for up to 10 units allows scalable energy systems, making it suitable for projects with growing power demands.

Specifications:

Parameter	Value
PV Input Channels (MPPTs)	3
Max. PV Input Power	18kW
Max. PV Input Voltage	As per model specs
UPS Output Capacity	12kW
Parallel Operation	Up to 10 units
Grid Connection	Three-phase, low voltage
Generator Port	Dedicated, with auto control
Switching Type	Seamless on/off-grid
Extra Functions	Generator exercise, boost
Communication	RS485 / CAN / WiFi (optional)

Typical Applications:

• Residential hybrid solar + battery + generator systems
• Small commercial solar backup installations
• Off-grid communities requiring high-reliability power
• Microgrid and energy management systems

Packing List:

• 1 × LVTOPSUN Three Phase Low Voltage Hybrid Inverter
• User manual & installation guide
• Communication accessories (optional)
• Warranty documents

About Manufacturer

LVTOPSUN is a leading provider of advanced renewable energy solutions, specializing in lithium battery storage, photovoltaic products, and smart inverter technology. Their hybrid inverters are designed for efficiency, flexibility, and reliability, making them a trusted choice for sustainable power systems worldwide.
