Make Taijin Korea (160 PCD) Butterfly Valve

Taijin 160 PCD butterfly valve for transformer radiator isolation. Second-hand unit.

Share This Product :

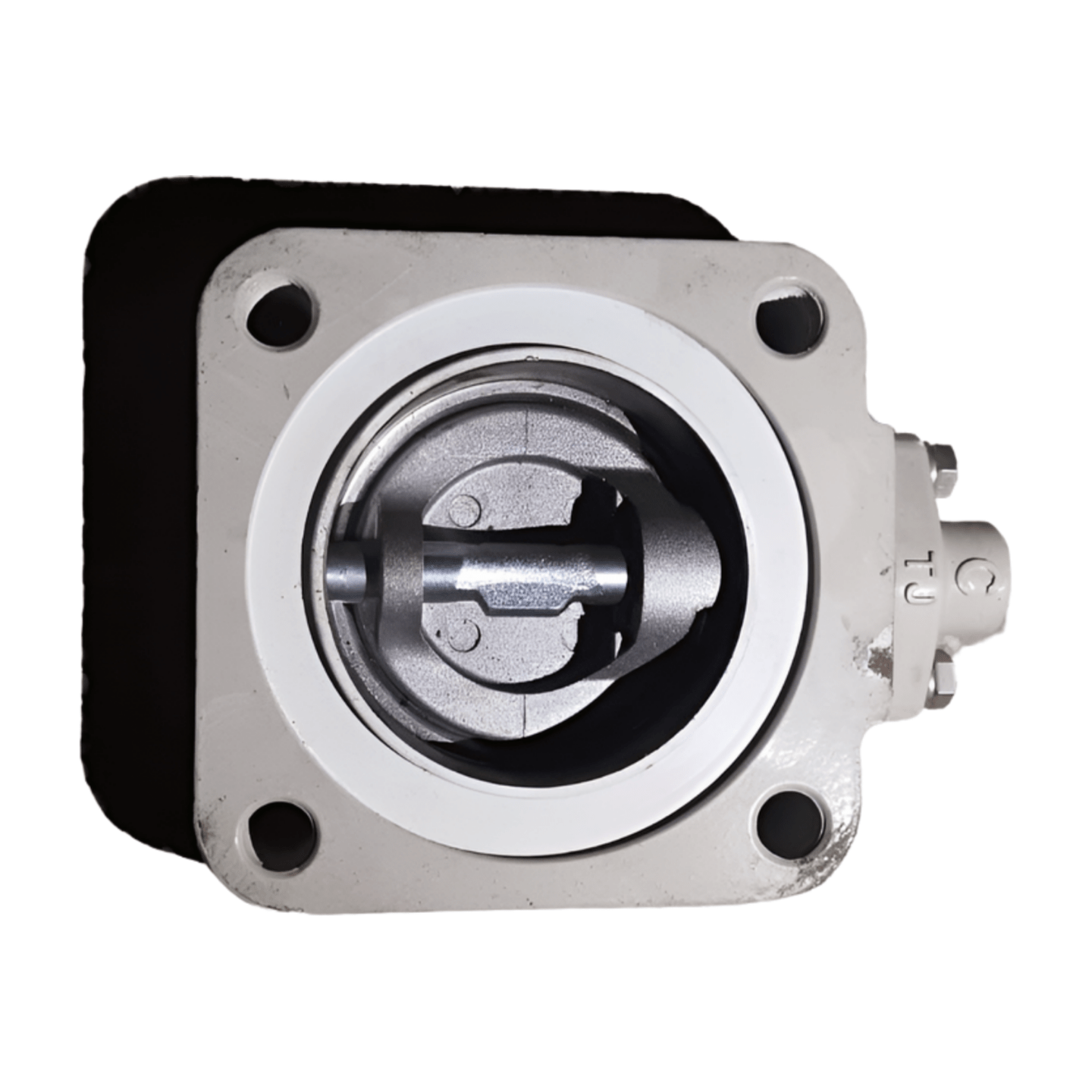

A Taijin (Korea) butterfly valve with a 160 mm pitch circle diameter flange, for transformer radiator and pipework isolation.

What these valves do on a transformer

Radiator butterfly valves isolate each radiator bank from the main tank. That allows a leaking or damaged radiator to be removed and repaired without draining the transformer — which is the difference between a half-day job and a major outage with oil processing.

They are also closed during transport, so radiators can be detached and the tank moved without losing oil.

Why PCD is the dimension that matters

Flanges are matched by their bolt pattern, not by nominal bore. The pitch circle diameter — the diameter of the circle through the bolt hole centres — together with the number of holes determines whether a valve bolts on.

Two valves of the same nominal size from different manufacturers frequently have different PCDs and different hole counts, because transformer radiator flanges are not always to a single international standard. This is why the PCD is quoted in the part description at all.

What to confirm before ordering

  • PCD and number of bolt holes, measured on the existing flange
  • Nominal bore and face-to-face dimension
  • Gasket type and whether a replacement gasket is included
  • Handle or gearbox operation, and whether a position indicator is required

Safety note

A radiator valve left closed after maintenance removes that radiator from service silently. Valve position is verified before returning a transformer to load.

Condition: second-hand unit. Send a photograph of the existing part with its dimensions and ratings, and IndusGrove will confirm compatibility and availability.
