Rogowski Coils

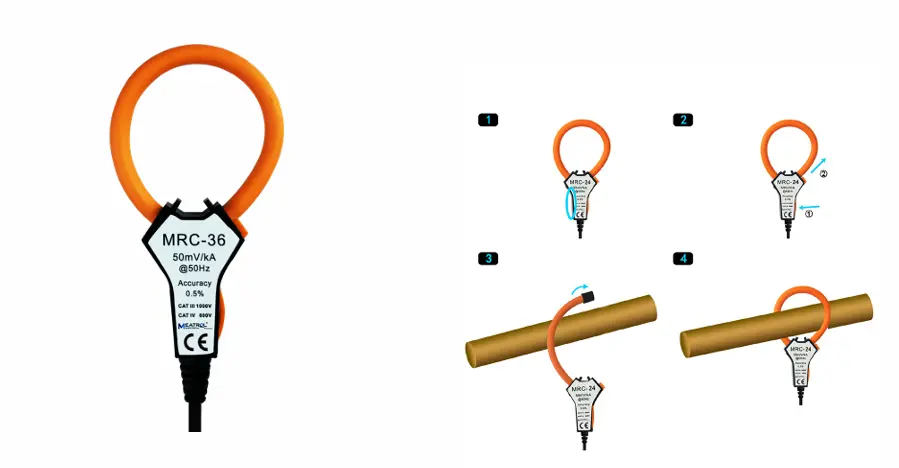

MRC Ø6 Flexible RogowskiCoil

  • Measured current: 1A to 500KA
  • Output sensitivity tolerance: ±5% (not calibrated)
  • Output sensitivity tolerance: ±0.5%, 25°C (calibrated)
  • Position error: ±1%
  • Bandwidth: 1Hz to 20kHz (-3dB)

Share This Product :

TECHNICAL DATA
  • Measured current: 1A to 500KA
  •  Output sensitivity tolerance: ±5% (not calibrated)
  • Output sensitivity tolerance: ±0.5%, 25°C (calibrated)
  • Position error: ±1%
  •  Bandwidth: 1Hz to 20kHz (-3dB)
Customer Benefits
  • Waterproof rating up to IP53
  • Mini size
  • RoHs, CE certification
  • No power supply required
  All the parameters can be customized, Contact us for details
About Manufacturer:
Meatrol Electrical  (ROGOWSKI TECHNOLOGY (SHANGHAI) CO., LTD.), China Its founded in Shanghai in 2009, and in 2022, the company established factories in Wenzhou and Chongqing. With three state-of the-art factories, MEATROL has achieved an annual production capacity of 1.5 million Rogowski coils, ensuring the ability to handle large-scale orders while significantly reducing the likelihood of delays due to various factors.
