Single-Phase Smart Energy Meter

NIK 2100 SINGLE-PHASE AMI METER

  • Dual energy measurement: active and reactive (import/export)
  • Multi-tariff functionality: 4 tariffs with 12 configurable zones
  • Tamper detection: magnetic and electromagnetic field sensors
  • Real-time display of voltage, current, and power
  • Optical port for local configuration and data access
  • Optional communication: RS-485 and PLC-G3 interfaces
  • LCD display with OBIS codes and vector diagram
  • Front-panel “View” and programmable “RESET” buttons
  • DIN rail mounting option available
  • Battery-powered backup mode for event logging and memory retention

Share This Product :

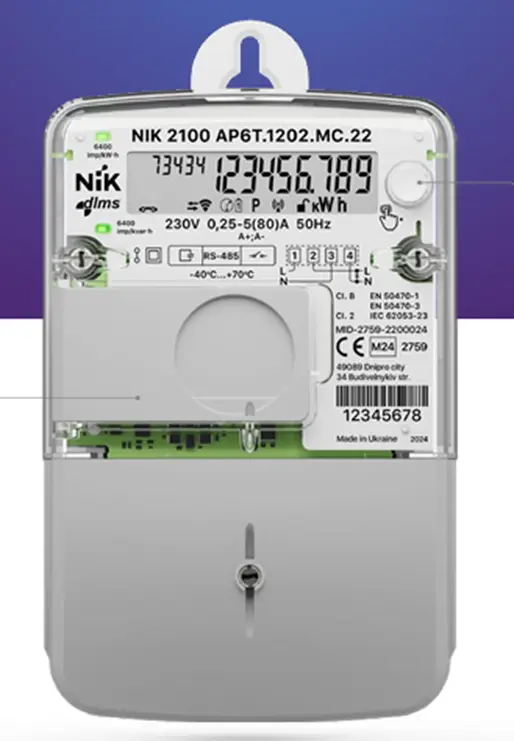

The NIK 2100 Single-Phase Smart Energy Meter is a precision device designed for the accurate measurement of electrical energy in residential, commercial, and light industrial environments. Fully compatible with modern AMI systems, it supports real-time monitoring, tamper detection, and multi-tariff billing. With advanced communication interfaces and a robust build, this meter is a reliable solution for smart energy management and regulatory compliance.
Specifications
  • Nominal voltage: 230 V / 240 V
  • Operating voltage range: -20% to +15%
  • Frequency: 50 Hz
  • Nominal current: 5 A
  • Maximum current: 80 A
  • Accuracy class (active energy): Class B (EN 50470-1)
  • Accuracy class (reactive energy): Class 2 (IEC 62053-23)
  • Meter constant:
    • 6400 imp/kWh
    • 6400 imp/kVArh
  • Starting current:
    • 12.5 mA (active energy)
    • 15.6 mA (reactive energy)
  • Power consumption:
    • 10 VA (2 W) in voltage circuits without PLC
    • 20 VA (5 W) in voltage circuits with PLC
    • 0.2 VA in current circuits
  • Display: LCD with 6 digits + 3 decimals
  • Operating temperature: -40°C to +70°C
  • Mounting option: Optional DIN rail version
  • Weight: ≤ 1 kg
  • Battery lifetime: Up to 16 years
  • Service life: 30 years
  • Dimensions: 112 mm × 97 mm × 48 mm (other variants available)
Features
  • Dual energy measurement: active and reactive (import/export)
  • Multi-tariff functionality: 4 tariffs with 12 configurable zones
  • Tamper detection: magnetic and electromagnetic field sensors
  • Real-time display of voltage, current, and power
  • Optical port for local configuration and data access
  • Optional communication: RS-485 and PLC-G3 interfaces
  • LCD display with OBIS codes and vector diagram
  • Front-panel “View” and programmable “RESET” buttons
  • DIN rail mounting option available
  • Battery-powered backup mode for event logging and memory retention
Applications
  • Smart grid and AMI integration
  • Residential smart metering
  • Commercial energy billing systems
  • Industrial monitoring with reactive power tracking
  • Solar/net metering setups
  • Energy audits and load analysis in utilities and enterprises
About the Manufacturer
NIK is one of the largest energy technology enterprises in Eastern Europe, established in 1997. The company specializes in the design and production of advanced metering systems, industrial controllers, and integrated AMI solutions. With an in-house engineering and R&D department, NIK delivers innovative energy management tools for utilities, businesses, and infrastructure projects.
