Single-Phase Smart Energy Meter

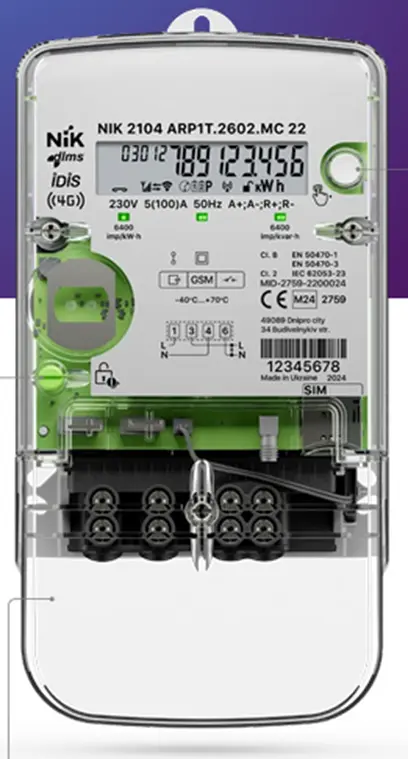

NIK 2104 SINGLE-PHASE AMI METER

  • Active and reactive energy measurement
  • Two measuring elements
  • 4 tariffs / 12 time zones
  • Optical communication port
  • RS-485, GSM, PLC-G3, and Radio M-Bus interface options
  • Tamper sensors for terminal cover and case
  • Magnetic and electromagnetic field influence sensors
  • Disconnector for remote power cut (optional)
  • Transparent housing
  • Battery-powered backup mode
  • Configurable RESET button
  • LCD with OBIS codes and vector diagram
  • Secure data encryption
  • Remote firmware upgrade
  • DIN rail mounting (optional)
  • Prepaid functionality available with NOVASYS

Share This Product :

The NIK 2104 Single-Phase Meter is a highly advanced smart metering device designed for accurate and secure monitoring of electrical energy in residential and commercial environments. Featuring two measuring elements, a transparent case, and compatibility with AMI systems, this meter supports multi-tariff energy accounting, remote control, and modern communication protocols. With an option for prepaid functionality through NOVASYS software, the NIK 2104 offers complete control and flexibility in energy management.
Specifications
  • Accuracy class (active energy): EN 50470-1 Class B
  • Accuracy class (reactive energy): IEC 62053-23 Class 2
  • Nominal voltage: 230 V / 240 V
  • Operating voltage range: -20% to +15%
  • Nominal frequency: 50 Hz
  • Nominal current: 5 A
  • Maximum current: 100 A
  • Meter constant: 6400 imp/(kWh) and 6400 imp/(kVArh)
  • Starting current (active): 12.5 mA
  • Starting current (reactive): 15.6 mA
  • Power consumption (voltage circuits without GSM/PLC): 10 VA (2 W)
  • Power consumption (voltage circuits with GSM/PLC): 20 VA (5 W)
  • Power consumption (current circuits): 0.2 VA
  • LCD display: 6+3 digits
  • Protection class: IP54
  • Operating temperature: -40°C to +70°C
  • Weight: ≤ 0.6 kg
  • Service life: 30 years
  • Battery lifetime: 16 years
Features
  • Active and reactive energy measurement
  • Two measuring elements
  • 4 tariffs / 12 time zones
  • Optical communication port
  • RS-485, GSM, PLC-G3, and Radio M-Bus interface options
  • Tamper sensors for terminal cover and case
  • Magnetic and electromagnetic field influence sensors
  • Disconnector for remote power cut (optional)
  • Transparent housing
  • Battery-powered backup mode
  • Configurable RESET button
  • LCD with OBIS codes and vector diagram
  • Secure data encryption
  • Remote firmware upgrade
  • DIN rail mounting (optional)
  • Prepaid functionality available with NOVASYS
Applications
  • Smart residential energy billing
  • Industrial and commercial energy monitoring
  • Integration into AMI (Advanced Metering Infrastructure) systems
  • Projects requiring tariff-based or prepaid metering
  • Grid infrastructure optimization
About the Manufacturer
NIK is one of the largest energy technology enterprises in Eastern Europe, established in 1997. The company specializes in the design and production of advanced metering systems, industrial controllers, and integrated AMI solutions. With an in-house engineering and R&D department, NIK delivers innovative energy management tools for utilities, businesses, and infrastructure projects
