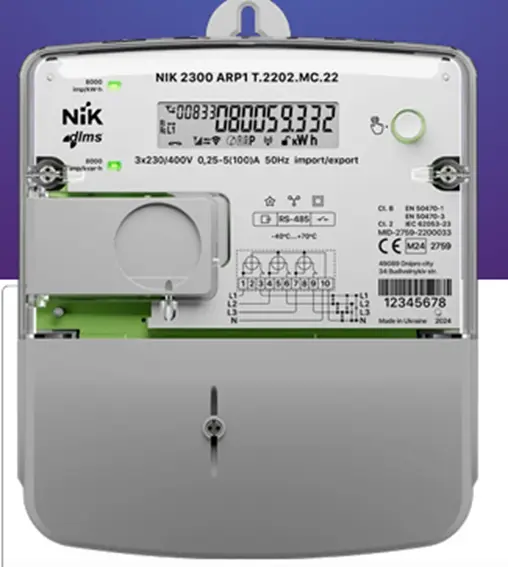

The NIK 2300 is an advanced three-phase smart energy meter designed for both direct and transformer connections, supporting a wide voltage range and high-accuracy energy measurements. Available in two design variants, this model can measure both active and reactive energy with exceptional precision (accuracy class 0.5s for transformer type). Equipped with modern communication interfaces, optical port, configurable RESET button, and DLMS protocol support, the NIK 2300 offers seamless AMI integration. Its robust tamper protection, built-in disconnector, harmonic monitoring, and encrypted data transmission make it ideal for industrial and utility-scale applications.
Specifications
Accuracy class (active energy): EN 50470-1 B / EN 50470-3 (0.5s for transformer)
Accuracy class (reactive energy): IEC 62053-23 Class 2
Nominal voltage: 3×230/400 V, 3×240/416 V, or 3×57.7/100 V
Operation voltage range: -20% to +15%
Nominal frequency: 50 Hz
Nominal current: 5 A
Maximum current: 10 A / 80 A / 100 A
Meter constant: 8000 imp/(kWh) and 8000 imp/(kVArh)
Starting current (active):
Direct connection: 12.5 mA
Transformer connection: 10 mA (5 mA)
Starting current (reactive):
Direct connection: 15.6 mA
Transformer connection: 15 mA (9.3 mA)
Power consumption (max):
Voltage circuit without PLC: 10 VA (2 W)
Voltage circuit with PLC: 20 VA (5 W)
Current circuits: 0.05 VA
Protection level: IP54
Operating temperature: -40°C to +70°C
LCD display: 6 + 3 digits
Battery life: 16 years
Service life: 24 years
Weight: ≤ 0.73 kg
DIN rail mountable (optional)
Features
Active and reactive energy metering
Accuracy class 0.5s available for transformer applications
Supports 4 tariffs and 12 time zones
Two case designs with optical port and configurable RESET button
DLMS protocol support and encrypted data communication
Harmonic distortion measurement
Tamper detection for case and terminal
Transparent housing for visual inspection
Instantaneous readings: voltage, current, power
Optical port and RS-485 or PLC-G3 interface
Built-in disconnector (optional)
DIN rail mountable (optional)
Remote firmware update support
Compliant with advanced AMI solutions
Applications
Utility-level and industrial energy metering
Energy distribution and transformer-level monitoring
Solar or renewable energy integration
Advanced metering infrastructure (AMI) systems
Metering systems requiring high-accuracy and secure data handling
About the Manufacturer
NIK is one of the largest energy technology enterprises in Eastern Europe, established in 1997. The company specializes in the design and production of advanced metering systems, industrial controllers, and integrated AMI solutions. With an in-house engineering and R&D department, NIK delivers innovative energy management tools for utilities, businesses, and infrastructure projects.
