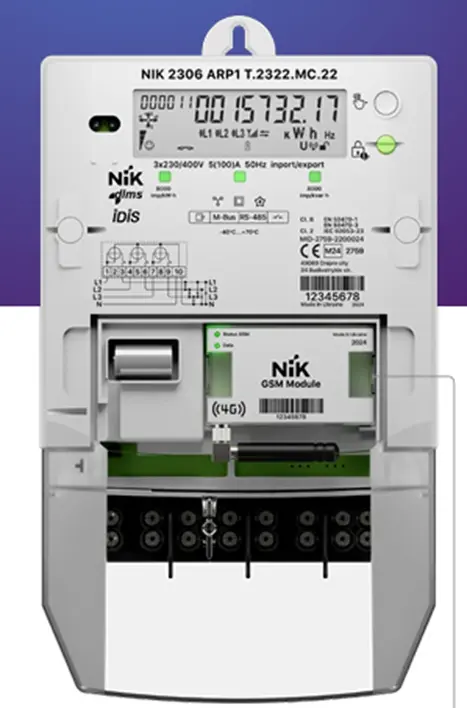

The NIK 2306 is an intelligent three-phase smart energy meter engineered for both direct and transformer connections. Designed with modularity and scalability in mind, it features a replaceable communication module and supports a wide variety of interfaces including 4G/LTE, RS-485, PLC-G3, and M-Bus. The meter includes advanced features such as the “Last GASP” function for sending alerts during power loss, high-precision energy measurement (accuracy class 0.5s for transformer setups), remote firmware updates, and strong data encryption. Ideal for industrial and smart grid applications, NIK 2306 ensures reliable metering, communication, and control in demanding environments.
Specifications
Accuracy class (active energy): EN 50470-1 B / EN 50470-3 / 0.5s for transformer connection
Accuracy class (reactive energy): IEC 62053-23 Class 2
Nominal voltage: 3×230/400 V; 3×240/416 V; 3×57.7/100 V
Operation voltage range: -20% to +15%
Nominal frequency: 50 Hz
Nominal current: 5 A
Maximum current: 10 A / 100 A
Meter constant: 8000 imp/(kWh) and 8000 imp/(kVArh)
Starting current (active energy): 12.5 mA
Starting current (reactive energy): 15.6 mA
Power consumption:
Voltage circuits (without PLC): 10 VA (2 W)
Voltage circuits (with PLC): 20 VA (5 W)
Current circuits: 0.2 VA
Protection level: IP54
Operating temperature: -40°C to +70°C
LCD display: 6 + 3 digits
Weight: ≤ 1.3 kg
Service life: 24 years
Features
Active and reactive energy metering
High precision class 0.5s for transformer connection
Replaceable communication module (4G/LTE, RS-485, PLC-G3, etc.)
“Last GASP” messaging during power failure
Remote firmware update and configuration
DLMS and IDIS protocol support
Disconnector and tamper detection
Optical port and encrypted data transfer
Instantaneous readings: voltage, current, power
Modular plug-in design
DIN rail mounting (optional)
Supports multitariff systems
Fully compatible with NIK AMI system
Applications
Industrial and commercial three-phase power monitoring
Transformer-based energy metering
Utility-scale AMI and smart grid deployments
Locations requiring communication redundancy and data encryption
Energy management for critical infrastructure
About the Manufacturer
NIK is one of the largest energy technology enterprises in Eastern Europe, established in 1997. The company specializes in the design and production of advanced metering systems, industrial controllers, and integrated AMI solutions. With an in-house engineering and R&D department, NIK delivers innovative energy management tools for utilities, businesses, and infrastructure projects.
