Oil Test Set

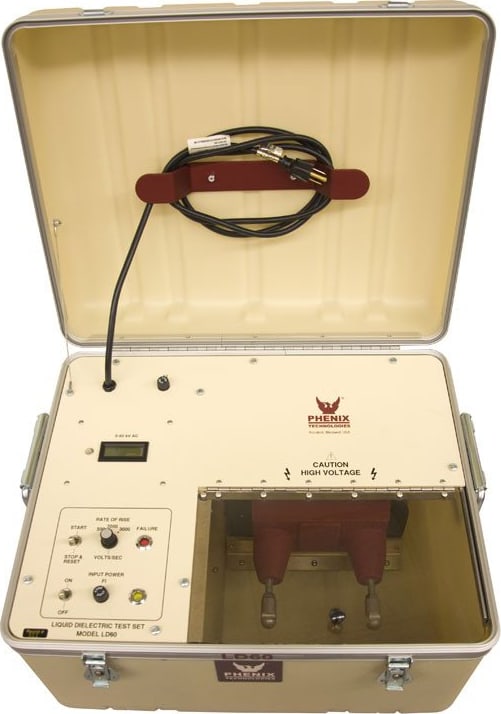

Phenix USA LD-60 Oil Test Set

  • Lightweight and ruggedly constructed for years of field or lab use
  • Economical liquid dielectric testing solution
  • Simple set-up
  • Semi-automatic operation
  • 0-60 kV AC

Share This Product :

Liquid/Oil Dielectric Test Set designed to test and measure the breakdown voltage of insulation fluids used in transformers, capacitors, bushings and related high voltage equipment. With the appropriate oil vessel test cell, these test sets are designed to perform tests in accordance with standards ASTM D1816, ASTM D877, IEC 60156, BS 148, VDE 0370. The operating controls are conveniently grouped on the front panel and include a large, easy to-read digital voltmeter, on/off switch with indicator light, rate of rise selector switch, plus a start/reset switch. The test compartment is provided with a transparent cover interlocked to the test circuit with a limit switch to ensure full operating safety. The test set is semi-automatic. The liquid to be tested is placed in the test cell and then placed in the test compartment on the cradle contacts, the rate of rise is selected, the test chamber lid closed, and the switch moved to start position. The test set will automatically raise the voltage. When a breakdown of the liquid occurs, the test sample failure lamp will illuminate, and the meter will hold the breakdown voltage level.

No additional information.
