Pressure Relief Device

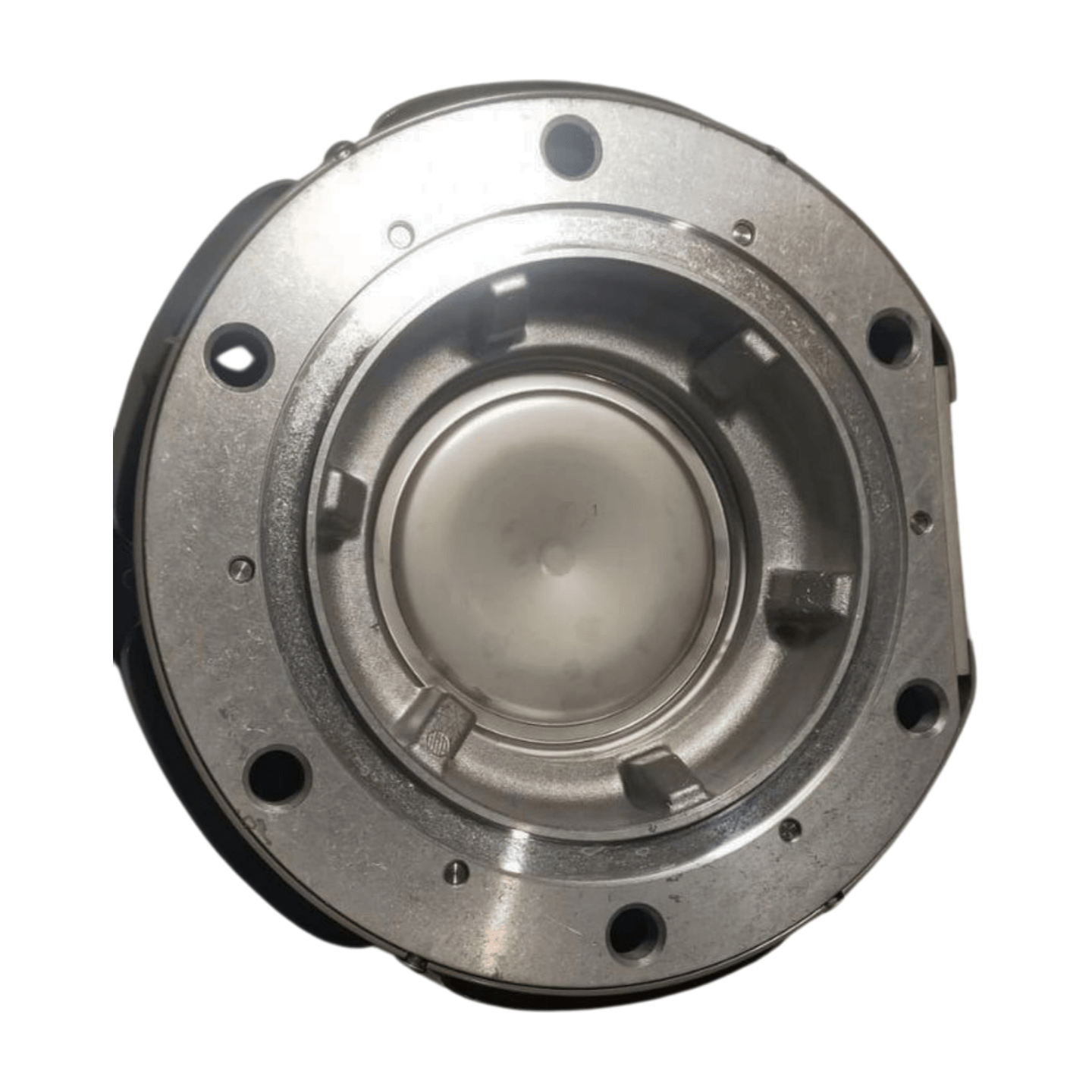

MR LMPRD 10PSI Pressure Relief Device

Reinhausen (MR) LMPRD pressure relief device with 10 PSI set pressure, for oil-filled transformers. Self-reseating with trip indicator. Second-hand unit.

Share This Product :

A Reinhausen (MR) LMPRD pressure relief device with a 10 PSI set pressure, for tank-mounting on oil-filled transformers and reactors.

What it protects against

An internal arcing fault decomposes insulating oil into gas almost instantaneously, and tank pressure rises far faster than electrical protection can clear the fault. The PRD lifts at its set pressure, vents the overpressure and reseats — converting what would be a tank rupture and an oil fire into a vented transformer that can be investigated.

10 PSI versus 12 PSI is not a preference

Set pressure is specified by the transformer designer against the tank’s pressure withstand and the expected thermal expansion range. Substituting a 12 PSI device where 10 PSI was specified means the tank sees twenty percent more pressure before relief begins. Substituting the other way risks nuisance operation on a hot day at full load — which vents oil, admits air and moisture, and requires an outage to make good.

Typical construction

  • Spring-loaded, self-reseating valve — relieves and recloses rather than venting once like a rupture disc
  • Fast opening, with full flow area reached in milliseconds
  • Mechanical trip indicator showing that the device has operated
  • Optional alarm and trip contacts
  • Weatherproof for outdoor substation service

Condition: second-hand unit. Confirm the required set pressure against the transformer documentation, and send the flange pattern and bolt circle with your enquiry.
