Pressure Relief Device

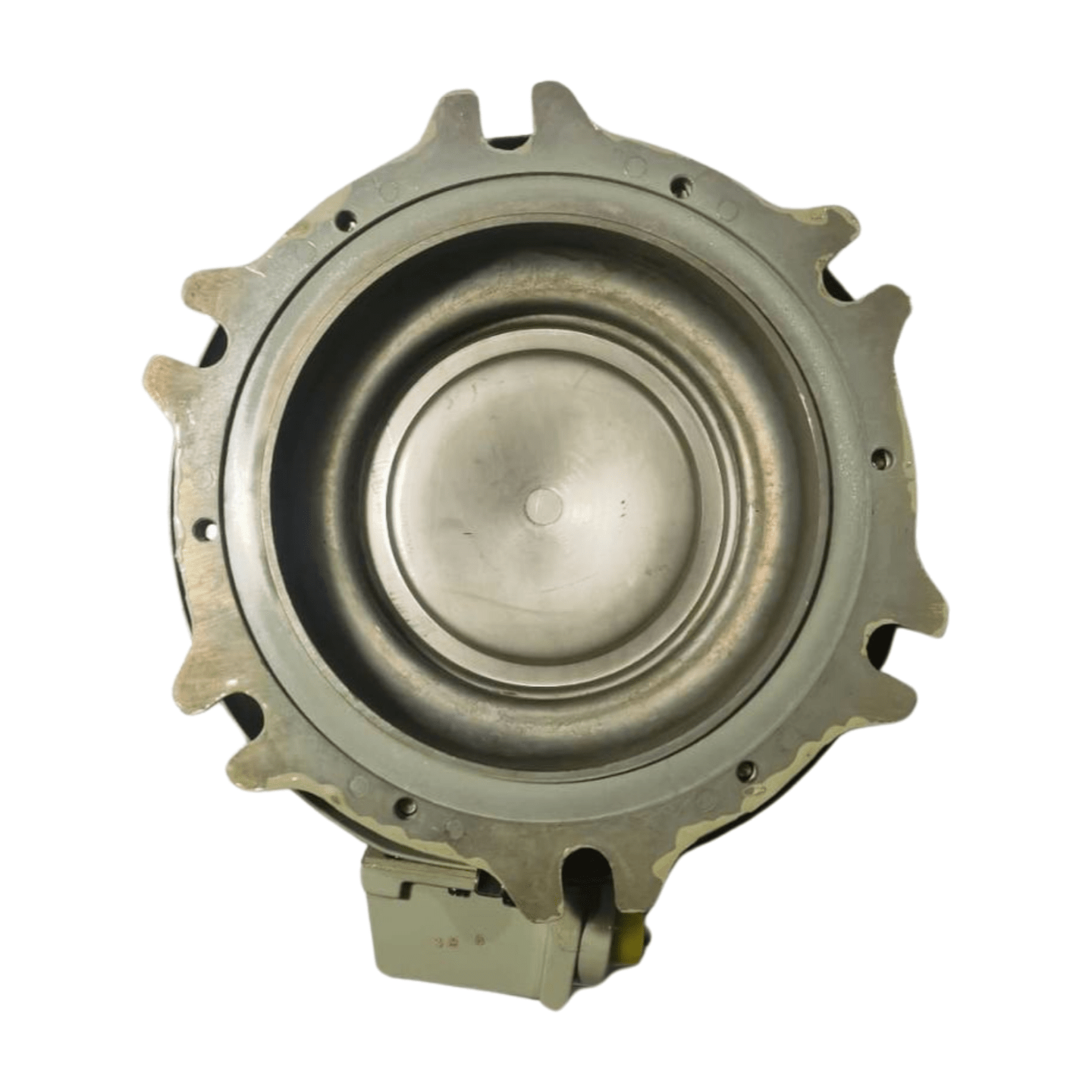

Qualitrol Pressure Relief Device, 12 PSI

Qualitrol pressure relief device with 12 PSI set pressure for oil-filled transformers. Self-reseating, with trip indicator. Second-hand unit.

Share This Product :

A Qualitrol pressure relief device with a 12 PSI set pressure, tank-mounted on oil-filled transformers. Pressure relief devices are the product Qualitrol was founded on in 1945, and they remain the company’s signature item.

Why milliseconds matter

An internal arcing fault gasifies insulating oil almost instantaneously. Tank pressure rises far faster than any electrical protection can de-energise the transformer — differential protection is fast, but the pressure wave is faster.

The PRD is a purely mechanical response operating in the same timeframe as the event itself. It lifts, vents the overpressure and reseats, which is what stands between an internal fault and a ruptured tank, burning oil, and damage to everything else in the bay.

Why reseating matters

A rupture disc relieves once and leaves the transformer permanently open to atmosphere — admitting air, moisture and contamination until it is replaced. A spring-loaded reseating device protects and then reseals the tank, so a transformer that survived the fault is not immediately being degraded by the protection that saved it.

Set pressure is the specification

12 PSI is not a general-purpose figure. It is matched by the transformer designer to the tank’s pressure withstand and thermal expansion range. Fitting a higher-rated device means the tank sees more pressure before relief; a lower one risks nuisance operation on a hot day at full load, venting oil and admitting moisture on a healthy transformer.

Condition: second-hand unit. Send the mounting flange pattern, bolt circle and required set pressure with your enquiry.
