Solar Inverters

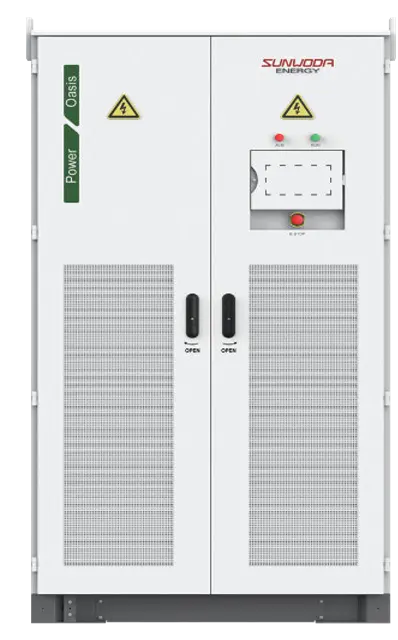

Sunwoda OASIS Power Industrial Scale Power Inverter

  • Complete turnkey for Industries
  • Multi-MWh capacity scalable
  • Integrated PCS, BMS, EMS, and auxiliary systems
  • Designed for renewable integration and grid stability

Share This Product :

It integrates high-capacity battery racks, PCS, EMS, and auxiliary systems into containerized solutions. It supports multiple applications including peak shaving, load shifting, frequency regulation, and renewable energy support.
Technical Specifications:
Product model OSP-100K OSP-200K OSP-300K OSP-400K
Battery Side Parameter
Operating Voltage Range                                         650-950V
Full Power Voltage Range                                         715-950V
Max. Input Current 171A 342A/171A*2 171A*3 342A*2/171A*4
Connected Number of Battery Cluster Branches 1 1/2 3 2/4
Grid Side Parameter (On Grid)
Max.Output Power 110KVA 220KVA 330KVA 440KVA
Nominal Output Power 100kW 200kW 300kW 400kW
Nominal Output Voltage                                                230/400V
Nominal Output Current 144A 288A/144A*2 144A*3 288A*2/144A*4
Max. Output Current 159A 318A/159A*2 159A*3 318A*2/159A*4
Nominal frequency                                            50/60(±5Hz)
THDi                                             ≤3%
Power Factor                                             -1(Leading)~1(Laging)
Wiring Method                                            3W+N+PE
Grid Side Parameter(Off Grid)
Nominal Power            / 180kW            /             /
Nominal Output Voltage            /         230V/400V            /            /
Nominal Output Current            /        260A/130A*2            /            /
Nominal Frequency           /          50/60Hz             /           /
THDu           /            <3% (Linear load)            /          /
System Parameter
Temperature                                     -20°C~+55°C (Derating above 45 °C)
Humidity                                      5~95%RH,Non-condensing
Altitude                                      2000m
Cooling Mode                                      Intelligent Air-Cooling
Protection Grade                                      IP54
Weight                                     <1000kg
Accreditation                                      IEC 61000; IEC 62477; EN 50549-1,EN 50549-10,EN 50438,C10/C11
Size(W *D* H) 750*1200*2060mm/1200*1200*2380mm 1200*1200*2380mm

Key Features:
  • Multi-application support (backup, peak shaving, renewable integration)
  • High safety with LFP and fire protection
Certifications:
  • IEC
  • CE
  • UL9540
  • UN38.3
About Manufacturer:
Sunwoda Energy, a subsidiary of Sunwoda Group (SZ300207), is a globally leading enterprise in Residential, Commercial & Industrial, Utility, and Smart Energy Storage solutions. With 28+ years in the new energy industry, Sunwoda ranks among the top 10 global battery companies with 246 GWh total production capacity and 50,000+ staff worldwide.
