Cable Fault Locator

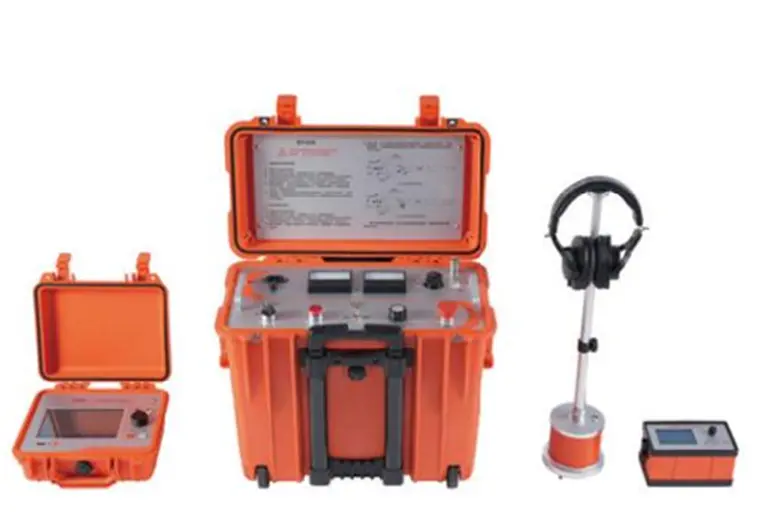

T20 Portable Cable Fault Location System

  • Suitable for 1–35kV cables and high-resistance faults
    • High surge energy and voltage: ideal for tougher fault locations
    • All-in-one portable system: locate, pre-locate, and pinpoint accurately
    • Sub-meter pinpointing with acoustic-magnetic filtering
    • Modular design supports both joint and standalone use



  • Modular: Surge Generator, TDR Pre-locator, Pin-pointer
    • Max Voltage: 32kV / 1024J Surge Energy
    • Pre-location Methods: LV TDR, ICE, Optional ARM
    • Pinpoint Accuracy: 0.1m (Magnetic-Acoustic)
    • For 1–35kV cables

Share This Product :

TECHNICAL DATA
  • Surge Generator (LP30/2): 0–32kV DC, 1024J, 5s interval, 32kg
  • TDR Pre-locator (WL20): 20m–100km range, 0.1m resolution, 7″ touchscreen
  • Pin-Pointer (PP20): 0.1m accuracy, 99dB acoustic amp, compass guidance
  • Pre-Location Methods: LV TDR, ICE, Optional ARM
  • Battery Life: 5h (WL20), 8h (PP20)
  • Safety: Double grounding, overload and thermal protection
  • Precise: 0.1m fault pinpointing with real-time compass guidance
  • Field-proven: Lightweight units, rugged cases, optimized for outdoor use
  • TDR supports ARM (optional) for enhanced fault reflection detection
About Manufacturer:
Founded in 2008, Xianheng intl (Tanbos) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Tanbos is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East.
