Cable Fault Locator

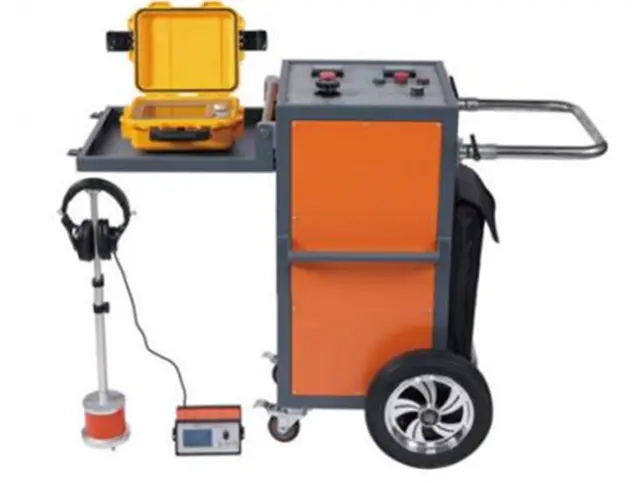

T32 Portable Cable Fault Location System

  • Ultra-High Energy: 32kV / 2048J for 1–500kV cables
  • Modular: Surge Generator, WL50+ TDR, Pin-pointer
  • ARM, ICE, and TDR methods included
  • Advanced pinpointing: 0.1m accuracy, acoustic-magnetic
  • Built for ultra-high voltage and extreme environments

Share This Product :

TECHNICAL DATA
  • Surge Generator (LP30/4+): 32kV, 2048J, DC/HV impulse/arc modes, 90kg
  • TDR Pre-locator (WL50+): 20m–100km, 0.1m resolution, 400MHz sampling, ARM/ICE/TDR
  • Pin-Pointer (PP20): 0.1m accuracy, 99dB acoustic gain, battery ≥8h
  • Enhanced signal filtering (100–1500Hz), IP43 protection
  • HV safety features: double grounding, auto discharge, loop protection
Customer Benefits
  • Supports fault location in 1–500kV networks
  • Industry-leading 2048J impulse energy – ideal for long and buried cables
  • High sampling TDR (400MHz) and built-in ARM for precise reflection readings
  • Reliable pinpointing with rugged probe and magnetic-acoustic time delay
  • Optimized for subsea cables, offshore infrastructure, and heavy industrial grids
About Manufacturer:
Founded in 2008, Xianheng intl (Tanbos) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Tanbos is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East.
  • ARM pre-location included standard
  • Largest in the series: 90kg surge unit for serious fault-clearing power
  • Upgraded TDR (WL50+) with touchscreen and enhanced trace resolution
