Transformer Turn Ratio Tester

TTR (Transformer Turn Ratio Tester)OLMAN INSTRUEMENT TR-700

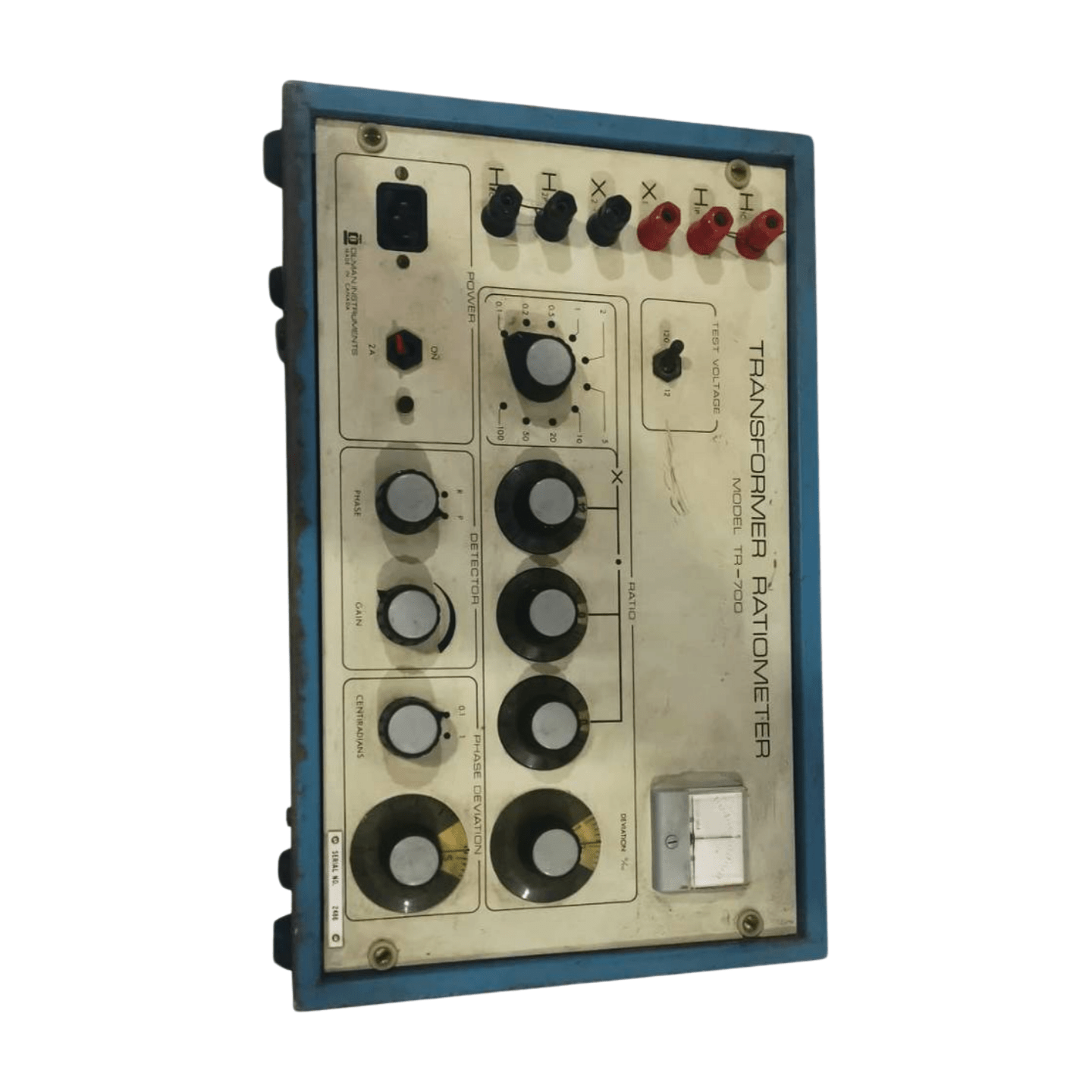

Olman Instrument TR-700 transformer turns ratio (TTR) test set. Second-hand unit.

Share This Product :

An Olman Instrument TR-700 transformer turns ratio test set, for verifying the ratio, polarity and phase relationship of transformer windings.

What the test establishes

The instrument applies a low voltage to one winding and measures the voltage induced in the other. The measured ratio is compared with the nameplate calculation, and the deviation reported as a percentage.

The accepted criterion, from IEEE C57.12.90, is that measured ratio should fall within 0.5% of calculated at every tap position.

Why such a tight tolerance

A single shorted turn in a winding of several thousand changes the ratio by a fraction of a percent. It is easy to dismiss as measurement noise — and it is a fault that will destroy the transformer, because the shorted turn acts as a short-circuited secondary and carries very large circulating current.

A ratio error of 0.6% is therefore not marginal. It is a finding.

Test every tap

Testing only the service tap proves that one position works. It says nothing about the other positions, and a tap changer contact with high resistance or a selector not making up properly will only appear on the tap that exercises it. The full sequence also confirms the tap changer advances correctly without skipping.

When to run it

At commissioning, after transport, as part of routine maintenance, after any through-fault, before returning a repaired unit to service, and whenever dissolved gas analysis suggests a winding problem.

Condition: second-hand unit. Send the transformer details and required ratings with your enquiry, and IndusGrove will confirm condition and availability.
