Cable Test Equipment

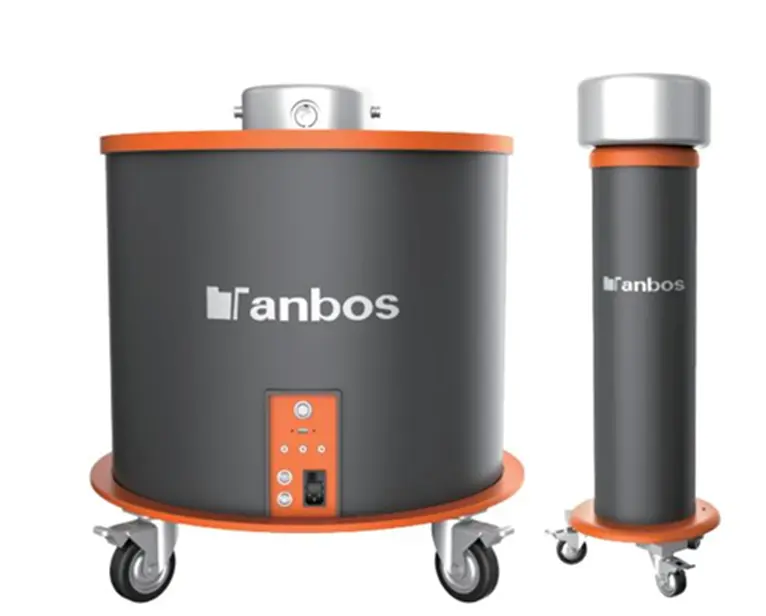

TV30 DAC Test and Diagnosis System

  • All-in-one PD + TD + TDR cable analyzer
  • Damped AC voltage output up to 30kV
  • Portable design, ideal for 10–20kV MV cable diagnostics
  • IEC 60270-compliant with 2pC PD sensitivity

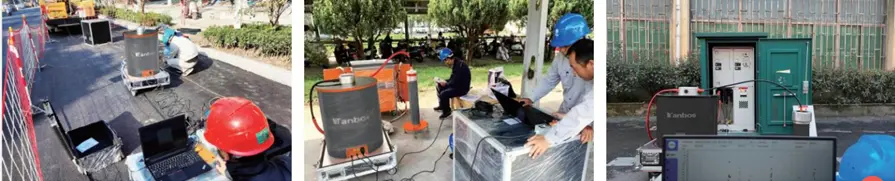

  • Used in new cable commissioning, repair verification, and aging evaluation
  • WiFi or wired PC control with graphical PD maps and database
  • Optional capacitor available for very short cables

Share This Product :

TECHNICAL DATA
  • Voltage Output: 0–30kV peak (DAC)
  • Measurement Types: Partial Discharge (PD), Tan Delta (TD), Time Domain Reflectometry (TDR)
  • Sensitivity: PD down to 2pC, system noise <20pC
  • Range: PD localization up to 20km; ±0.1m accuracy
  • Frequency: 20Hz–500Hz (test optimized)
  • Interface: Wired or WiFi; automated test control software
  • Standards: IEC 60270, IEC 60885-3, IEEE 400.3 compliant
  • Weight/Size: 78kg; Ø690×720mm (portable, fits vehicle trunks)
Customer Benefits
  • Three-in-One: Combines advanced PD, TD, and TDR into one intelligent test platform
  • Plug-and-Play: Minimal cabling and fully guided test workflow
  • Vehicle-Deployable: Compact and rugged for on-site inspections
  • High Accuracy: Reliable PD readings even in noisy environments
  • Report-Ready: Auto-report generation with cable aging indicators
About Manufacturer:
Founded in 2008, Xianheng intl (Tanbos) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Tanbos is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East
