TV60 DAC Test and Diagnosis System

  • High-voltage DAC diagnostics up to 36kV cable systems
  • All-in-one PD, Tan Delta & TDR analyzer

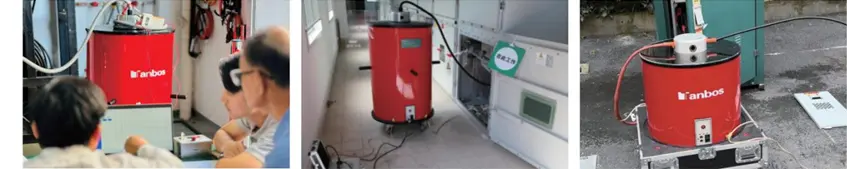

  • Portable design (100kg) for on-site testing
  • 2pC PD sensitivity – IEC 60270 certified
  • Designed for pre-commissioning, routine checks, and asset life evaluation
  • Ideal for 10–36kV grid diagnostics and post-repair verification
  • WiFi and wired communication with remote diagnostics possible

Share This Product :

TECHNICAL DATA
  • Output Voltage: 0–60kV peak (42.4kV RMS)
  • Diagnostics: Partial Discharge (PD), Tan Delta (TD), TDR
  • PD Sensitivity: 2pC minimum, ±1pC resolution
  • Frequency: 20Hz–500Hz DAC output
  • PD Localization: Up to 20km, ±0.1m accuracy
  • Communication: WiFi or LAN cable; auto report generation
  • System Noise: <20pC at 60kV
  • Size/Weight: Ø690×1000mm, 100kg
  • Operating Range: -20°C to +55°C
  • Standards: IEC 60270, IEC 60885-3, IEEE 400.3 compliant
Customer Benefits
  • High Voltage Coverage: Suitable for all 36kV-rated MV networks
  • Integrated Intelligence: Combines PD, TD & TDR in one system
  • Field Efficiency: Lightweight enough for mobile vans
  • Real-Time Output: On-screen PD mapping, TD curves, cable fault markers
  • Data-Ready: Built-in database, cloud-ready reports
About Manufacturer:
Founded in 2008, Xianheng intl (Tanbos) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Tanbos is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East.
