Cable Test Equipment

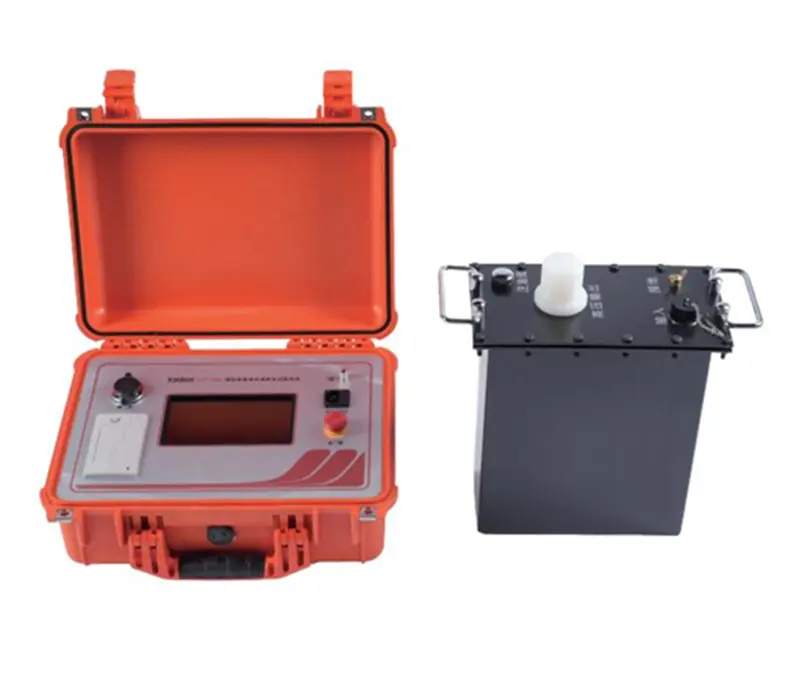

VLF-90kV Portable Hipot Test System

  • 0.1Hz ultra-low frequency insulation testing up to 90kV peak
  • Designed for 6–35kV power cable commissioning and diagnostics
  • ARM7 microcontroller with 7″ touchscreen for automated operation
  • Portable (controller: 5.8kg; booster: 55kg) with full safety protections

Share This Product :

TECHNICAL DATA
  • Output Voltage: 0–90kV (VLF)
  • Frequencies: 0.1Hz (≤1.1µF), 0.05Hz (≤2.2µF), 0.02Hz (≤5.5µF)
  • Waveform Distortion: ≤5%
  • Cable Range: 6–35kV
  • Operating Temp: -10°C to +40°C
  • Protections: Over-voltage/current (HV & LV sides)
  • Weight: Controller – 5.8kg; Booster – 55kg
  • Standards: Complies with IEC VLF testing regulations
Customer Benefits
  • Powerful Output: Enables withstand testing for higher-rated MV cables
  • Precision Simulation: Replicates power frequency stress with minimal insulation impact
  • Fast Setup: Simple wiring and built-in compensation capacitor for short cables
  • Automated Workflow: Self-check, ramp-up, constant output, and reporting—all automatic
  • Safe & Portable: Rugged booster unit plus compact controller for field mobility

About Manufacturer
  Founded in 2008, Xianheng intl (Tanbos) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Tanbos is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East.
