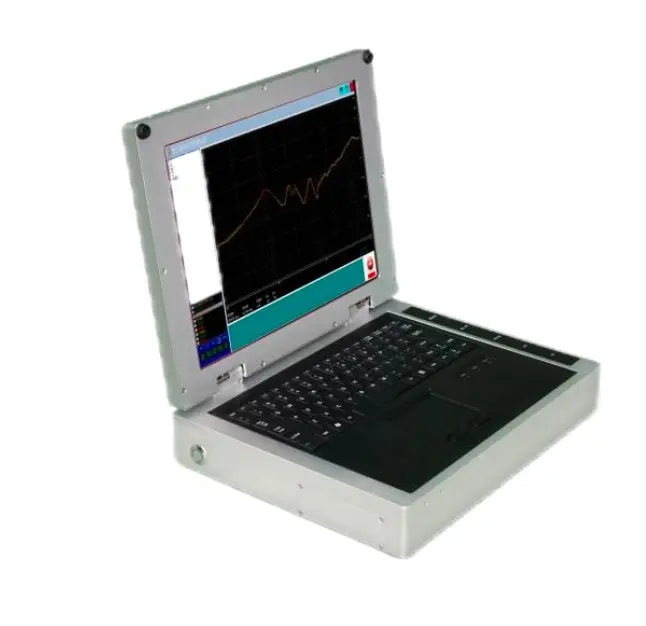

WDT-200 Sweep Frequency Response Analyzer – Transformer SFRA Testing System

  • Lightweight, portable SFRA test system in a rugged case
  • Built-in industrial PC with touchpad and keyboard
  • Complies with IEC 60076-18 standards
  • Designed for field testing in substations and transformer yards
  • Detects mechanical deformation and core integrity issues
  • Wide frequency sweep: 10Hz to 16MHz (up to 30MHz optional)
  • Results displayed on a large, sunlight-visible screen
  • USB data export and internal hard drive storage

Share This Product :

The WDT-200 Sweep Frequency Response Analyzer is a powerful diagnostic tool for identifying mechanical issues inside power transformers without opening them. Using advanced SFRA (Sweep Frequency Response Analysis), the system applies a variable-frequency signal to detect changes in inductance and capacitance—key indicators of transformer damage such as winding displacement, shorted turns, and core movement. Built for fieldwork, the WDT-200 is compact and self-contained, featuring a rugged case, a built-in PC for data processing, and robust software for visual diagnostics. It’s ideal for substation engineers and maintenance contractors looking for accurate and non-invasive transformer diagnostics.
Applications:
  • Detecting winding deformation, shorted turns, core displacement, and clamping faults
  • Preventive and corrective transformer maintenance
  • Post-transport transformer integrity assessment
  • Factory acceptance and routine in-service inspection
  • Power utility and transformer OEM testing programs
Specifications:
Test Performance:
  • Output Voltage: Up to 25Vpp (automatic adjustment)
  • Output Impedance: 50Ω
  • Input Impedance: 1MΩ (with built-in 50Ω matching)
  • Frequency Sweep: 10Hz – 16MHz (30MHz optional)
  • Frequency Accuracy: 0.00001
  • Measuring Dynamic Range: -120dB to +20dB
System Configuration:
  • Built-in PC with keyboard and touchpad
  • Large screen with high brightness, sunlight-readable
  • USB export and internal data storage
Environmental and Power:
  • Power Input: 180–270V AC, 50/60Hz
  • Operating Temperature: -10°C ~ 50°C
  • Humidity: ≤90%
  • Device Size: 310 × 240 × 75 mm
  • Net Weight: 4.5 kg (Device), 15 kg (with case & cables)
Accessories:
  • Transport Case
  • Red Test Cables (2 × 13.5m)
  • Yellow Test Cable (1 × 13.5m)
  • Ground Test Cables (2 × 7m)
  • Clamp Test Cables (Red & Yellow)
  • 2 Tee Adapters
  • Charger
  • Power Cable
  • USB Drive
  • Mouse
About Manufacturer:
Founded in 2008, Xianheng intl (Elecgene) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Elecgene is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East.
